Non-threadable rigid pipe
TXR Elbow in stainless steel AISI 304
Rigid conduit derived from a metal sheet of STAINLESS STEEL AISI 304. The bending radius is 2,5 more than the nominal diameter, used together with our fittings TR/TR code 57000, where there are accidental paths as lings, pillars, projection, and in all situations where it isn’t allowed to bend the conduit in place. Excellent resistance to impacts crashes, and corrosion, self-extinguishing according to norms EN IEC 61386. EN IEC 61386 Certificate equivalent standard: Meets with the requirements of BS EN 61386 -2 -3 and BS 731 Part 1.

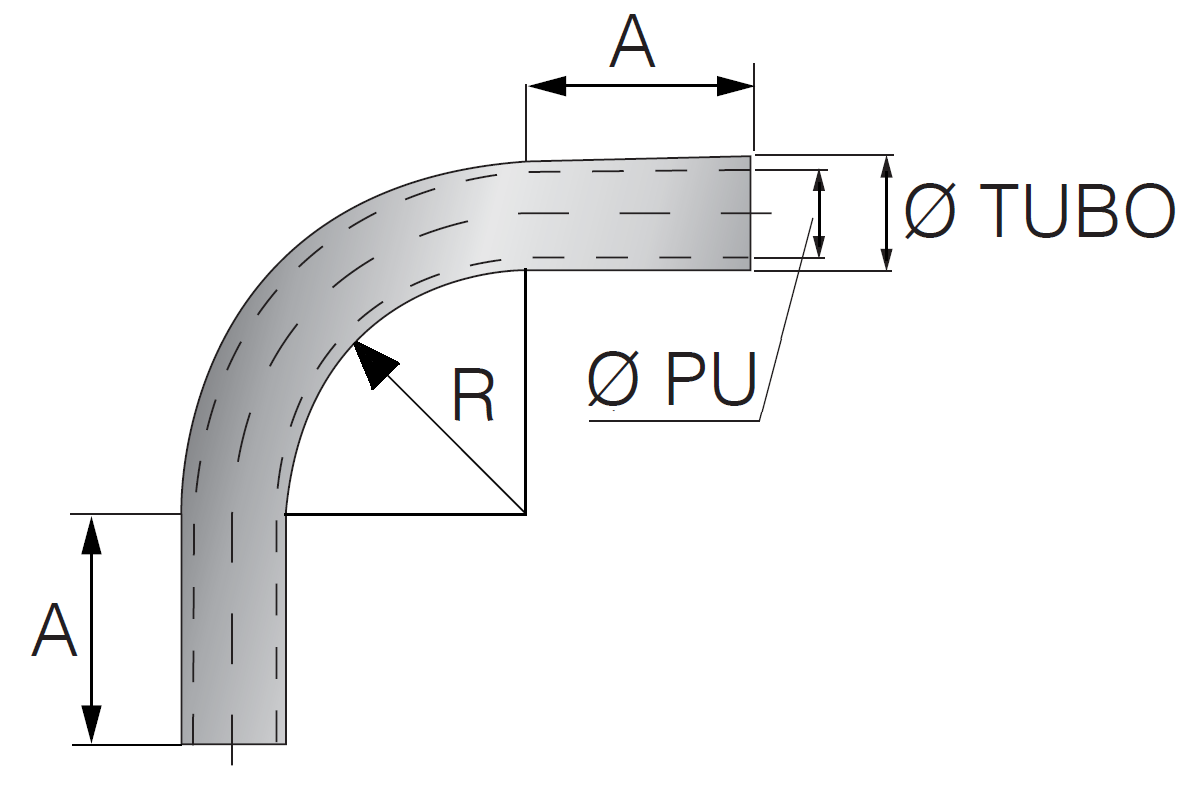

θ T- Pipe diameter
θ PU – Maximum cable passage
R – Pipe radius
A – Linear length of the Pipe
Material: Stainless Steel AISI 304
Color: Steel
Application sectors
Characteristics
Operating temperature: – 25 °C / + 400 °C
Degree of protection IP: IP67
Material: Stainless Steel AISI 304
Color: Steel
Produced according to the standard: EN 60423
Reference standard: EN IEC 61386-1,21
Classification codes EN IEC 61386: 5 5 4 7
Tensile strength: 1000 N
Compressive strength: 4000 N
Impact resistance: 20 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity <0,05 ohm/meter
Corrosion resistance: Excellent
Quality controls
Tests of tensile strength between pipe and fitting and compressive strength in accordance with the EN IEC 61386 standard. Analysis of casting and chemical composition by means of a certificate of conformity 2.2.
Certifications
Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01067
Registration, Evaluation, Authorization and Restriction of Chemicals
Restriction of Hazardous Substances directive
