Fittings for Conduits

Split straight fitting type 2P

PA6 con raccordo filettato maschio divisibile per guaina corrugato flessibile IP50. I raccordi apribili divisibili 2P si adattano perfettamente alle guaine apribili. Sono realizzati in poliammide 6 (PA6) dalla speciale formulazione. Tali raccordi possono essere facilmente utilizzati per attivita’ di retrofit su installazioni esistenti grazie alla capacita’ di bloccaggio del filetto con le ghiere apribili disponibili.

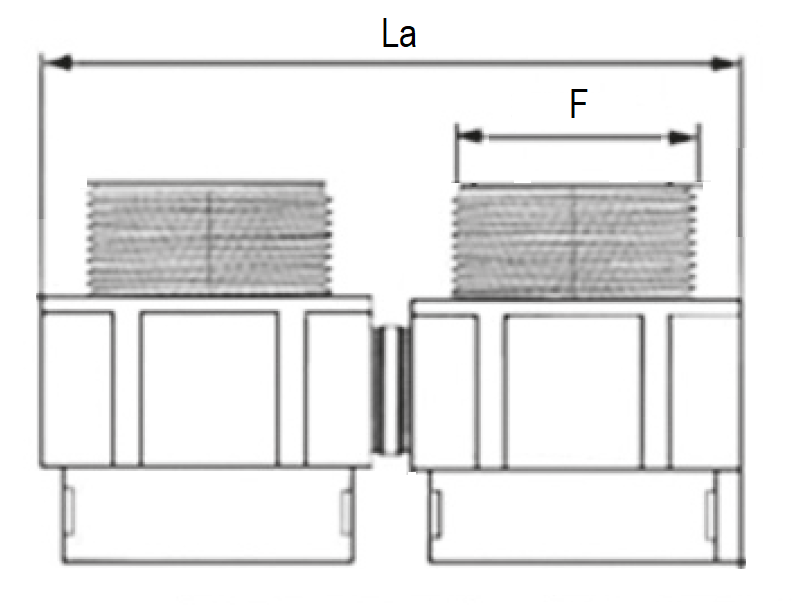

NW – Nominal diameter of the conduit
θ ID – Maximum cable passage
F – Thread Type and Thread Size
La – Length of the fitting at the open position
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey

NW(mm)

NW(mm)

Select Thread(F)

Product code

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Product code

P65016

NW(mm)

14

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Product code

P65020

NW(mm)

20

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Product code

P65025

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Product code

P65032

NW(mm)

37

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Product code

P65040

NW(mm)

45

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Product code

P65050

NW(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Product code

P65109

NW(mm)

14

Thread(F)

PG (DIN 40430)

Size(F)

PG13

Product code

P65113

NW(mm)

20

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Product code

P65121

NW(mm)

23

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Product code

P65129

NW(mm)

37

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Product code

P65229

Characteristics

Operating temperature: – 45 °C / + 120 °C
Temperature (Short period) IS FIP: 140°C
Degree of protection IP: IP44
Material: Polyamide 6 MOD BS SGA(PA6 MOD BS SGA)
Color: Black / Grey
Halogen-Cadmium Free: Yes
Fire classification UL94: V2
Oxygen index EN ISO 4589-2: >28%
Glow wire test IEC 60695: 850 °C

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Halogen free

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive
