Fittings for Conduits

Reduction Fittings PA RD

Conduit reducer for corrugated flexible conduit IP66/IP67/IP68/IP69. Our PA RD conduit reducer, made of specially modified, halogen-free polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to ist excellent UV resistance, PA RD is also perfectly suited for outdoor installations. With the brand new 360° interlocking system and an inside conduit seal, PA RD complies with the highest possible protection class IP69. ARPA is mainly used when bigger sizes of our conduits in fine or course profile need to be reduced.

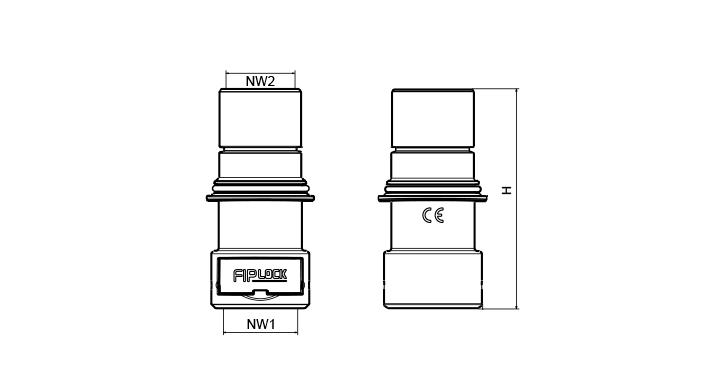

NW1, NW2 – Nominal diameter of the conduit
H – Height of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Conduit profile type: “C”

Color

Color

NW(mm)

NW(mm)

H(mm)

H(mm)

NW 2(mm)

NW 2(mm)

Product code

Color

Black

NW(mm)

7

H(mm)

49.1

NW 2(mm)

10

Product code

P400710B

Color

Grey

NW(mm)

7

H(mm)

49.1

NW 2(mm)

10

Product code

P400710G

Color

Black

NW(mm)

10

H(mm)

53

NW 2(mm)

12

Product code

P401012B

Color

Grey

NW(mm)

10

H(mm)

53

NW 2(mm)

12

Product code

P401012G

Color

Black

NW(mm)

10

H(mm)

62.2

NW 2(mm)

17

Product code

P401017B

Color

Grey

NW(mm)

10

H(mm)

62.2

NW 2(mm)

17

Product code

P401017G

Color

Black

NW(mm)

10

H(mm)

62.3

NW 2(mm)

23

Product code

P401023B

Color

Grey

NW(mm)

10

H(mm)

62.3

NW 2(mm)

23

Product code

P401023G

Color

Black

NW(mm)

10

H(mm)

62.7

NW 2(mm)

29

Product code

P401029B

Color

Grey

NW(mm)

10

H(mm)

62.7

NW 2(mm)

29

Product code

P401029G

Color

Black

NW(mm)

12

H(mm)

64.2

NW 2(mm)

17

Product code

P401217B

Color

Grey

NW(mm)

12

H(mm)

64.2

NW 2(mm)

17

Product code

P401217G

Color

Black

NW(mm)

12

H(mm)

64.3

NW 2(mm)

23

Product code

P401223B

Color

Grey

NW(mm)

12

H(mm)

64.3

NW 2(mm)

23

Product code

P401223G

Color

Black

NW(mm)

12

H(mm)

64.7

NW 2(mm)

29

Product code

P401229B

Color

Grey

NW(mm)

12

H(mm)

64.7

NW 2(mm)

29

Product code

P401229G

Color

Black

NW(mm)

17

H(mm)

73.4

NW 2(mm)

23

Product code

P401723B

Color

Grey

NW(mm)

17

H(mm)

73.4

NW 2(mm)

23

Product code

P401723G

Color

Black

NW(mm)

17

H(mm)

73.8

NW 2(mm)

29

Product code

P401729B

Color

Grey

NW(mm)

17

H(mm)

73.8

NW 2(mm)

29

Product code

P401729G

Color

Black

NW(mm)

23

H(mm)

73.8

NW 2(mm)

29

Product code

P402329B

Color

Grey

NW(mm)

23

H(mm)

73.8

NW 2(mm)

29

Product code

P402329G

Color

Black

NW(mm)

23

H(mm)

86.7

NW 2(mm)

36

Product code

P402336B

Color

Grey

NW(mm)

23

H(mm)

86.7

NW 2(mm)

36

Product code

P402336G

Color

Black

NW(mm)

29

H(mm)

86.9

NW 2(mm)

36

Product code

P402936B

Color

Grey

NW(mm)

29

H(mm)

86.9

NW 2(mm)

36

Product code

P402936G

Color

Black

NW(mm)

29

H(mm)

87.1

NW 2(mm)

48

Product code

P402948B

Color

Grey

NW(mm)

29

H(mm)

87.1

NW 2(mm)

48

Product code

P402948G

Color

Black

NW(mm)

36

H(mm)

99.9

NW 2(mm)

48

Product code

P403648B

Color

Grey

NW(mm)

36

H(mm)

99.9

NW 2(mm)

48

Product code

P403648G

Characteristics

Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386, UL1696
Tensile strength: 500 N
Notched bar impact test ISO 180: 7-25 KJ/m2
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Excellent (40 anni)

Certifications

American Society for Testing and Materials

Halogen free

National Fire Protection Association

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for rolling stock (halogen free) EN 45545-2
