Fittings for Conduits
Quick coupling fitting INR TR/TR
Quick coupling fitting for rigid pipe to rigid pipe connection IP67. Quick-coupling fitting for galvanized tubes to connect two rigids pipes. They are manufactured in brass which is then nichel-plated. They assure a protection degree IP67. Range of temperature -40°C and +105°C. Electrical continuity <0,05 ohm/mt. All our NICKEL PLATED BRASS are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a brass fittings are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a corrosion tests. Certified and periodically inspected by IMQ ( Italian Mark of Quality ).

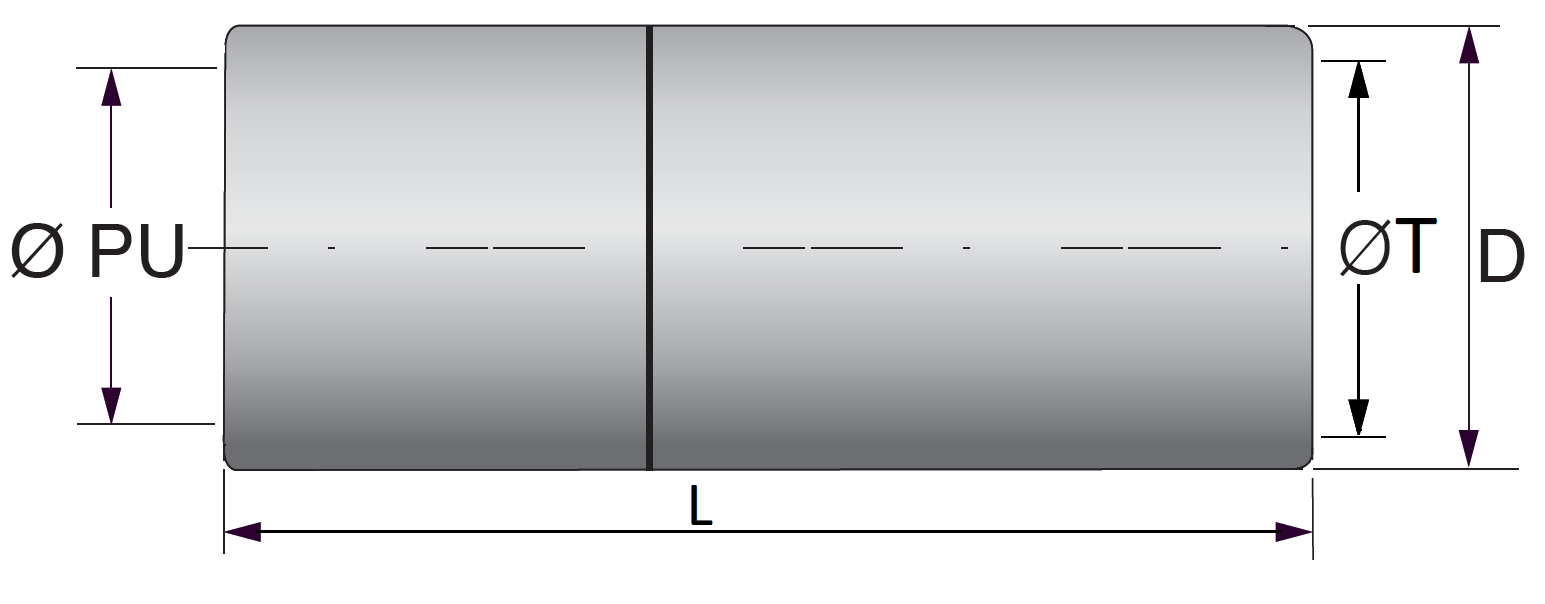

θ T- Pipe diameter
θ PU – Maximum cable passage
D – Diameter of the fitting
L – Length of the fitting
Material: Nickel plated brass
Color: Nickel
Material
Nickel plated brass
θ PU(mm)
12.5
L(mm)
63
θ T(mm)
16
Product code
57016
CAD
Material
Nickel plated brass
θ PU(mm)
16.5
L(mm)
63
θ T(mm)
20
Product code
57020
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386-1,21
Tensile strength: 1000 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of rigid pipes and fittings and cable gland fittings.
Certifications
Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066
Registration, Evaluation, Authorization and Restriction of Chemicals
Restriction of Hazardous Substances directive
