Fittings for Conduits
Quick coupling fitting INR TR/TG
Quick coupling fitting for rigid pipe to flexible conduits connection IP67. Quick-coupling fitting for connection of a rigid zinc pipe TZR with flexible conduit. They assure a protection degree IP67. Range of temperature -40° and +105°C. Electrical continuity <0,05 ohm/mt. All our NICKEL PLATED BRASS are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a brass fittings are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a corrosion tests. Certified and periodically inspected by IMQ ( Italian Mark of Quality ).

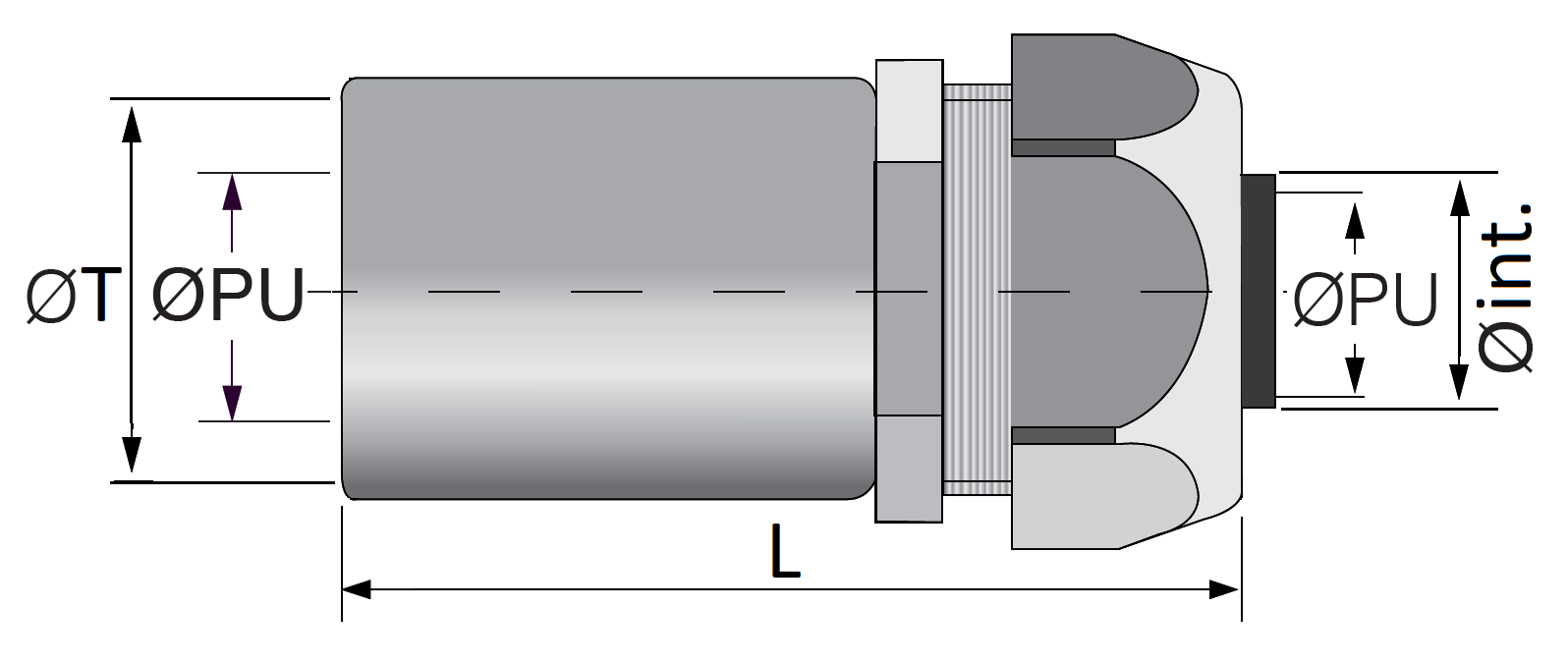

θ T- Pipe diameter
θ PU – Maximum cable passage
θ int.- Internal diameter of the conduit
L – Length of the fitting
Material: Nickel plated brass
Color: Nickel
θ int(mm)
12
Material
Nickel plated brass
θ PU(mm)
10.5
L(mm)
58
θ T(mm)
16
Product code
58016
CAD
θ int(mm)
15.5
Material
Nickel plated brass
θ PU(mm)
14
L(mm)
58
θ T(mm)
20
Product code
58020
CAD
θ int(mm)
20.5
Material
Nickel plated brass
θ PU(mm)
19
L(mm)
58
θ T(mm)
25
Product code
58025
CAD
θ int(mm)
26.5
Material
Nickel plated brass
θ PU(mm)
24.5
L(mm)
65
θ T(mm)
32
Product code
58032
CAD
θ int(mm)
34.5
Material
Nickel plated brass
θ PU(mm)
32.5
L(mm)
70
θ T(mm)
40
Product code
58040
CAD
θ int(mm)
39.5
Material
Nickel plated brass
θ PU(mm)
37.5
L(mm)
75
θ T(mm)
50
Product code
58050
CAD
θ int(mm)
15.5
Material
Nickel plated brass
θ PU(mm)
14
L(mm)
58
θ T(mm)
16
Product code
58216
CAD
θ int(mm)
20.5
Material
Nickel plated brass
θ PU(mm)
18
L(mm)
58
θ T(mm)
20
Product code
58220
CAD
θ int(mm)
15.5
Material
Nickel plated brass
θ PU(mm)
14
L(mm)
58
θ T(mm)
25
Product code
58225
CAD
θ int(mm)
34.5
Material
Nickel plated brass
θ PU(mm)
29.5
L(mm)
70
θ T(mm)
32
Product code
58232
CAD
θ int(mm)
39.5
Material
Nickel plated brass
θ PU(mm)
37.5
L(mm)
75
θ T(mm)
40
Product code
58240
CAD
θ int(mm)
50.5
Material
Nickel plated brass
θ PU(mm)
47
L(mm)
75
θ T(mm)
50
Product code
58250
CAD
θ int(mm)
26.5
Material
Nickel plated brass
θ PU(mm)
22.5
L(mm)
65
θ T(mm)
25
Product code
58325
CAD
θ int(mm)
26.5
Material
Nickel plated brass
θ PU(mm)
24.5
L(mm)
65
θ T(mm)
40
Product code
58340
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386-1,21
Tensile strength: 1000 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of rigid pipes and fittings and cable gland fittings.
