Fittings for Conduits
Quick coupling fitting INR F
Quick coupling fitting with fixed female thread for rigid pipe IP67. Quick-coupling fittings for GALVANIZED rigid pipes TZR, with female thread METRIC ISO 965, for connection wherever there are male threaded connections. They assure a protection degree IP67. Temperature range between -25°C and +150°C. Electrical continuity <0,05 ohm/mt. All our NICKEL PLATED BRASS are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a brass fittings are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a corrosion tests. Certified and periodically inspected by IMQ ( Italian Mark of Quality ).

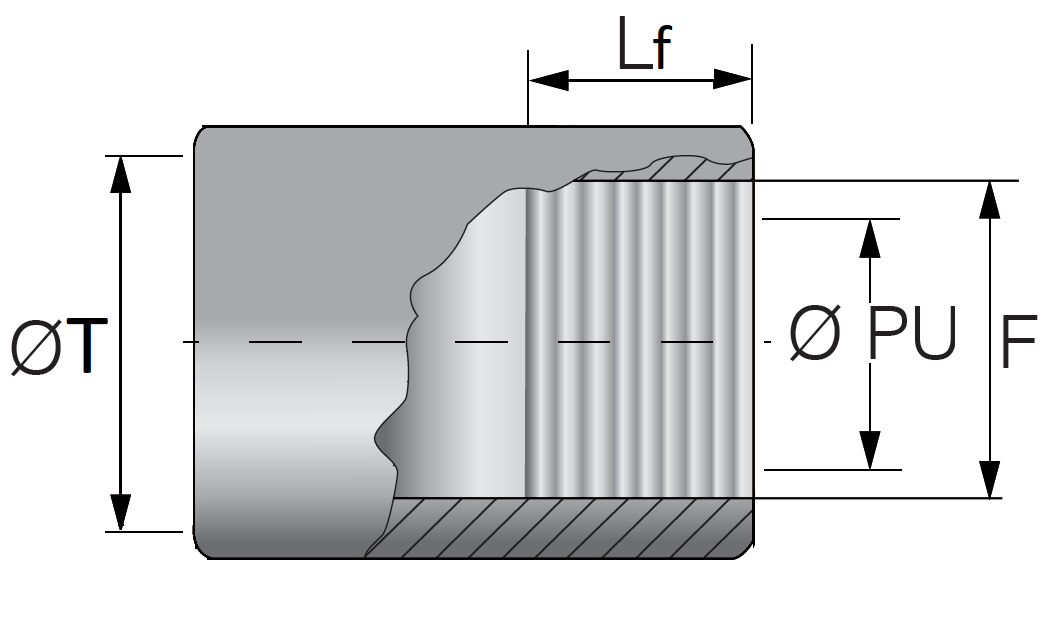

θ T- Pipe diameter
θ PU – Maximum cable passage
F – Thread Type and Thread Size
Lf – Thread length
Material: Nickel plated brass
Color: Nickel
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
θ PU(mm)
12.5
Lf(mm)
9
θ T(mm)
16
Product code
56016
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
θ PU(mm)
16.5
Lf(mm)
9
θ T(mm)
20
Product code
56020
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
θ PU(mm)
22
Lf(mm)
9
θ T(mm)
25
Product code
56025
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
θ PU(mm)
28
Lf(mm)
9
θ T(mm)
32
Product code
56032
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
θ PU(mm)
35
Lf(mm)
9
θ T(mm)
40
Product code
56040
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
θ PU(mm)
45
Lf(mm)
9
θ T(mm)
50
Product code
56050
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
θ PU(mm)
57
Lf(mm)
9
θ T(mm)
63
Product code
56063
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386-1,21
Tensile strength: 1000 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of rigid pipes and fittings and cable gland fittings.
