Metal accessories for fittings and cable glands

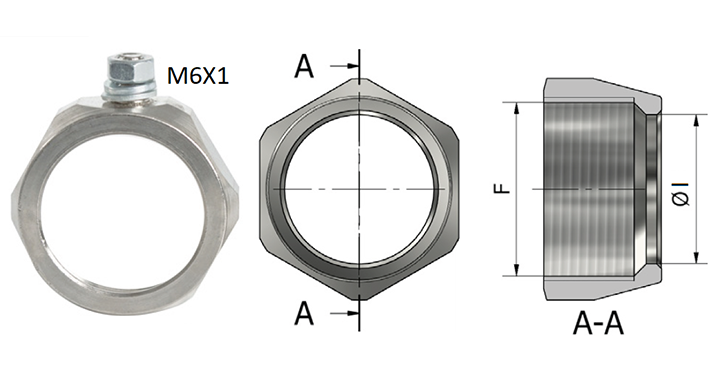

Nut with earthing screw

Nut for nichel-plated brass fittings with earthing screw thread M6x1. They are completed of plane washer, grower and nut for locking. Thghtening torque: 8 N.m .

Download technical sheet
i
Request informations

F – Thread Type and Thread Size
θ I- Maximum cable passage
Material: Nickel plated brass
Color: Nickel

Material

Material
Apply Reset

θ I(mm)

θ I(mm)
Apply Reset

Select Thread(F2)

Thread(F2) Size(F2)
Apply Reset
Apply Reset

Product code

Material

Nickel plated brass

θ I(mm)

16.5

Thread(F2)

Metrico (ISO 965)

Size(F2)

M20x1

Product code

29021 MT

Request info

Material

Nickel plated brass

θ I(mm)

18.5

Thread(F2)

Metrico (ISO 965)

Size(F2)

M24x1,5

Product code

29022 MT

Request info

Material

Nickel plated brass

θ I(mm)

22.5

Thread(F2)

Metrico (ISO 965)

Size(F2)

M27x1,5

Product code

29023 MT

Request info

Material

Nickel plated brass

θ I(mm)

28.5

Thread(F2)

Metrico (ISO 965)

Size(F2)

M33x1,5

Product code

29024 MT

Request info

Material

Nickel plated brass

θ I(mm)

34.5

Thread(F2)

Metrico (ISO 965)

Size(F2)

M42x2

Product code

29025 MT

Request info

Material

Nickel plated brass

θ I(mm)

44

Thread(F2)

Metrico (ISO 965)

Size(F2)

M50x2

Product code

29026 MT

Request info

Material

Nickel plated brass

θ I(mm)

49.5

Thread(F2)

Metrico (ISO 965)

Size(F2)

M58x2

Product code

29027 MT

Request info

Material

Nickel plated brass

θ I(mm)

63.3

Thread(F2)

Metrico (ISO 965)

Size(F2)

M72x2

Product code

29028 MT

Request info

Application sectors

Chemical and Pharmaceutical

Energy

Food industry

Infrastructure

OIl & Gas

Industrial automation

Industrial

Service sector

Naval

Railway

Characteristics

Operating temperature: – 60 °C / + 200 °C
Material: Nickel plated brass
Color: Nickel
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Certifications

CE compliance

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
