Metal junction boxes

Mounting plate

Mounting plates for EU6 type Junction Boxes, it can be made up of aluminium alloy, STAINLESS STEEL AISI 304 or 316L.

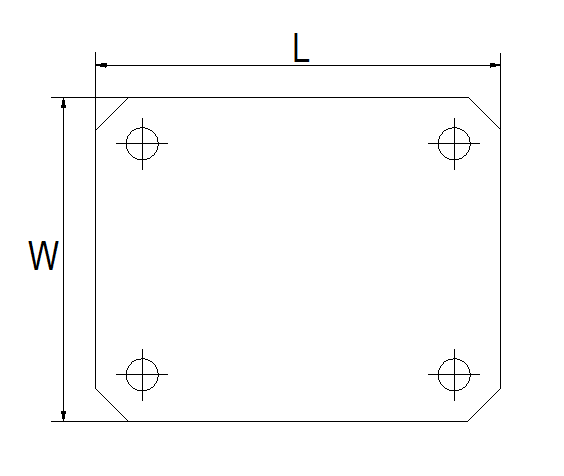

L – Lunghezza della piastra di montaggio
W – Larghezza della piastra di montaggio
H – Altezza della piastra di montaggio
Material: Aluminum alloy
Color: Grey

Material

Material

L(mm)

L(mm)

W(mm)

W(mm)

Product code

Material

Aluminum alloy

L(mm)

122

W(mm)

82

Product code

EU6282PF

Material

Aluminum alloy

L(mm)

133

W(mm)

109

Product code

EU6283PF

Material

Aluminum alloy

L(mm)

165

W(mm)

124

Product code

EU6284PF

Material

Aluminum alloy

L(mm)

206

W(mm)

172

Product code

EU6285PF

Material

Aluminum alloy

L(mm)

254

W(mm)

210

Product code

EU6286PF

Material

Aluminum alloy

L(mm)

349

W(mm)

260

Product code

EU6287PF

Characteristics

Operating temperature: – 40 °C / + 90 °C
Material: Aluminum alloy
Color: Grey
Reference standard: EN 60670-22
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
