Locknuts EMC
The hexagon locknut CD EMC made out of brass nickel-plated is required wherever cabinets with an anodized, lacquered or powder-coated surface are used. By tightening this special locknut with a PG thread, the sharp edges cut the isolated coverage and ensure the contact.

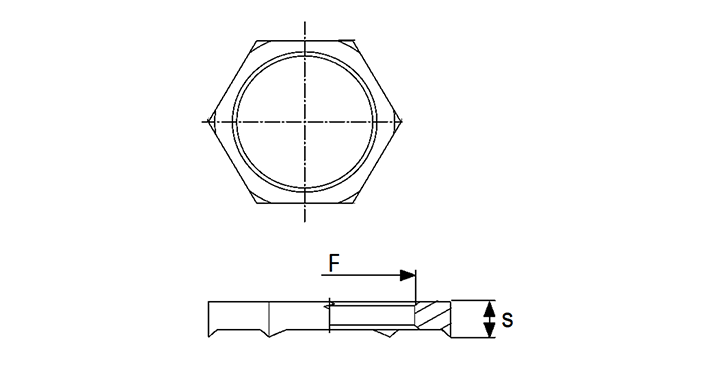

F – Thread Type and Thread Size
S – Locknut thickness
Material: Nickel plated brass
Color: Nickel
S(mm)
4.7
Material
Nickel plated brass
Thread(F)
PG (DIN 40430)
Size(F)
PG7
Product code
P58007
S(mm)
4.7
Material
Nickel plated brass
Thread(F)
PG (DIN 40430)
Size(F)
PG9
Product code
P58009
S(mm)
4.7
Material
Nickel plated brass
Thread(F)
PG (DIN 40430)
Size(F)
PG11
Product code
P58011
S(mm)
4.7
Material
Nickel plated brass
Thread(F)
PG (DIN 40430)
Size(F)
PG13,5
Product code
P58013
S(mm)
4.7
Material
Nickel plated brass
Thread(F)
PG (DIN 40430)
Size(F)
PG16
Product code
P58016
S(mm)
5.2
Material
Nickel plated brass
Thread(F)
PG (DIN 40430)
Size(F)
PG21
Product code
P58021
S(mm)
5.7
Material
Nickel plated brass
Thread(F)
PG (DIN 40430)
Size(F)
PG29
Product code
P58029
S(mm)
6.5
Material
Nickel plated brass
Thread(F)
PG (DIN 40430)
Size(F)
PG36
Product code
P58036
Application sectors
Characteristics
Operating temperature: – 60 °C / + 200 °C
Material: Nickel plated brass
Color: Nickel
Electrical characteristics: Guarantee electrical continuity
Application Electromagnetic (EMC): Yes
Corrosion resistance: Excellent
Certifications
Restriction of Hazardous Substances directive
