Nylon accessories and components for fittings and cable glands

Locknuts 2P

2P series divisible locknuts are suitable for retrofit applications in order to firmly tight threaded fittings applied to conduits where wires and cables are already installed. The locknuts are made of specially formulated Polyamide (PA6) and can be securely closed and permanently tightened. They especially fit with the divisible 2P fittings used with divisible conduits.

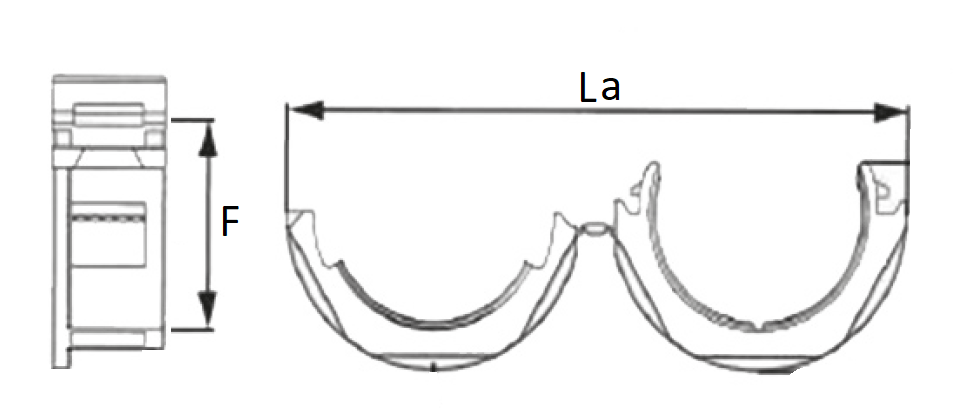

F – Thread Type and Thread Size
La – Length of the fitting at the open position
Material: Polyamide 6 (PA6 )
Color: Black

NW(mm)

NW(mm)

Select Thread(F)

La(mm)

La(mm)

Product code

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

La(mm)

44.5

Product code

P69016

NW(mm)

14

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

La(mm)

61.5

Product code

P69020

NW(mm)

20

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

La(mm)

73.8

Product code

P69025

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

La(mm)

92

Product code

P69032

NW(mm)

37

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

La(mm)

111.3

Product code

P69040

NW(mm)

45

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

La(mm)

143.8

Product code

P69050

NW(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG9

La(mm)

-

Product code

P69109

NW(mm)

14

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

La(mm)

73.8

Product code

P69113

NW(mm)

20

Thread(F)

PG (DIN 40430)

Size(F)

PG21

La(mm)

92

Product code

P69121

NW(mm)

23

Thread(F)

PG (DIN 40430)

Size(F)

PG29

La(mm)

111.3

Product code

P69129

NW(mm)

37

Thread(F)

PG (DIN 40430)

Size(F)

PG29

La(mm)

143.8

Product code

P69229

Characteristics

Operating temperature: – 45 °C / + 120 °C
Temperature (Short period) IS FIP: 140°C
Degree of protection IP: IP44
Material: Polyamide 6 (PA6 )
Color: Black / Grey
Halogen-Cadmium Free: Yes
Fire classification UL94: V2
Oxygen index EN ISO 4589-2: >28%
Glow wire test IEC 60695: 850 °C
