Half-shells, axial fix PA RS

Half-shells, axial fix for flexible corrugated conduit. The PA RS mounting half-shells are particularly suitable for the professional installation of corrugated conduits in drilled mounting frames or in common clamps. They prevent the pipes from being compressed when the mounting frames are tightened together or when clamps are used and thus prevent foreseeable damage to the conduit during operation. The integrated rib fixes the tubes in the axial direction but remains rotatable mounted, which is crucial for dynamically moved conduit connections. The mounting half-shells are ideally suited for corrugated pipes with fine or coarse profiles.

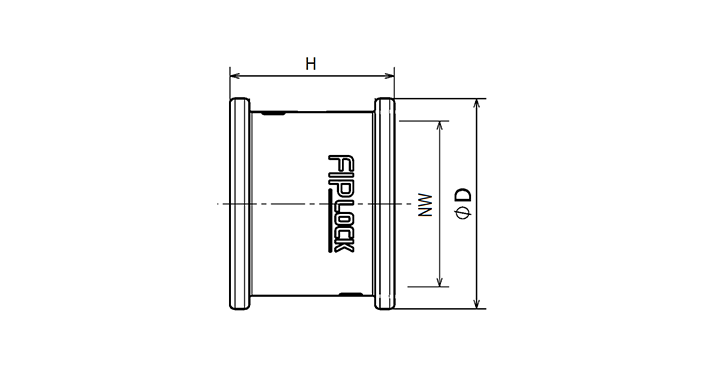

NW – Nominal diameter of the conduit
θ D – External diameter of the fitting
H – Height of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black

Color

Color

NW(mm)

NW(mm)

H(mm)

H(mm)

D(mm)

D(mm)

Product code

Color

Black

NW(mm)

12

H(mm)

34

D(mm)

26.5

Product code

P11112

Color

Black

NW(mm)

17

H(mm)

34

D(mm)

32

Product code

P11117

Color

Black

NW(mm)

23

H(mm)

34

D(mm)

39.5

Product code

P11123

Color

Black

NW(mm)

29

H(mm)

34

D(mm)

47

Product code

P11129

Color

Black

NW(mm)

36

H(mm)

34

D(mm)

55

Product code

P11136

Color

Black

NW(mm)

48

H(mm)

34

D(mm)

66.5

Product code

P11148

Characteristics

Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black
Reference standard: EN IEC 61386
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Very Good (15 to 20 anni)
