Nylon and pvc conduits

Flexible corrugated conduit type PPUV SF SC

Flexible corrugated conduit IP66/IP67/IP68/IP69. The corrugated conduit PPUV-SF-SC is manufactured in specially modified polypropylene (PP MOD BS UV [V2]) in compliance with the norms EN IEC 61386-2-3. The special UV stabilization accomplishes these corrugated conduits for outdoor cable protection applications. Furthermore, they are also usable for special applications like their usage on sidetrack applications and in the area of the solar industry. The halogen and cadmium-free fl ame retardant products are also very resistant to various strong chemicals and are therefore applicable for versatile requirements. Furthermore, they are specially stabilized and resistant to UV rays. Self-extinguishing and non-flame propagating in compliance with UL 1696, FMVSS 302, and EN IEC 61386, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

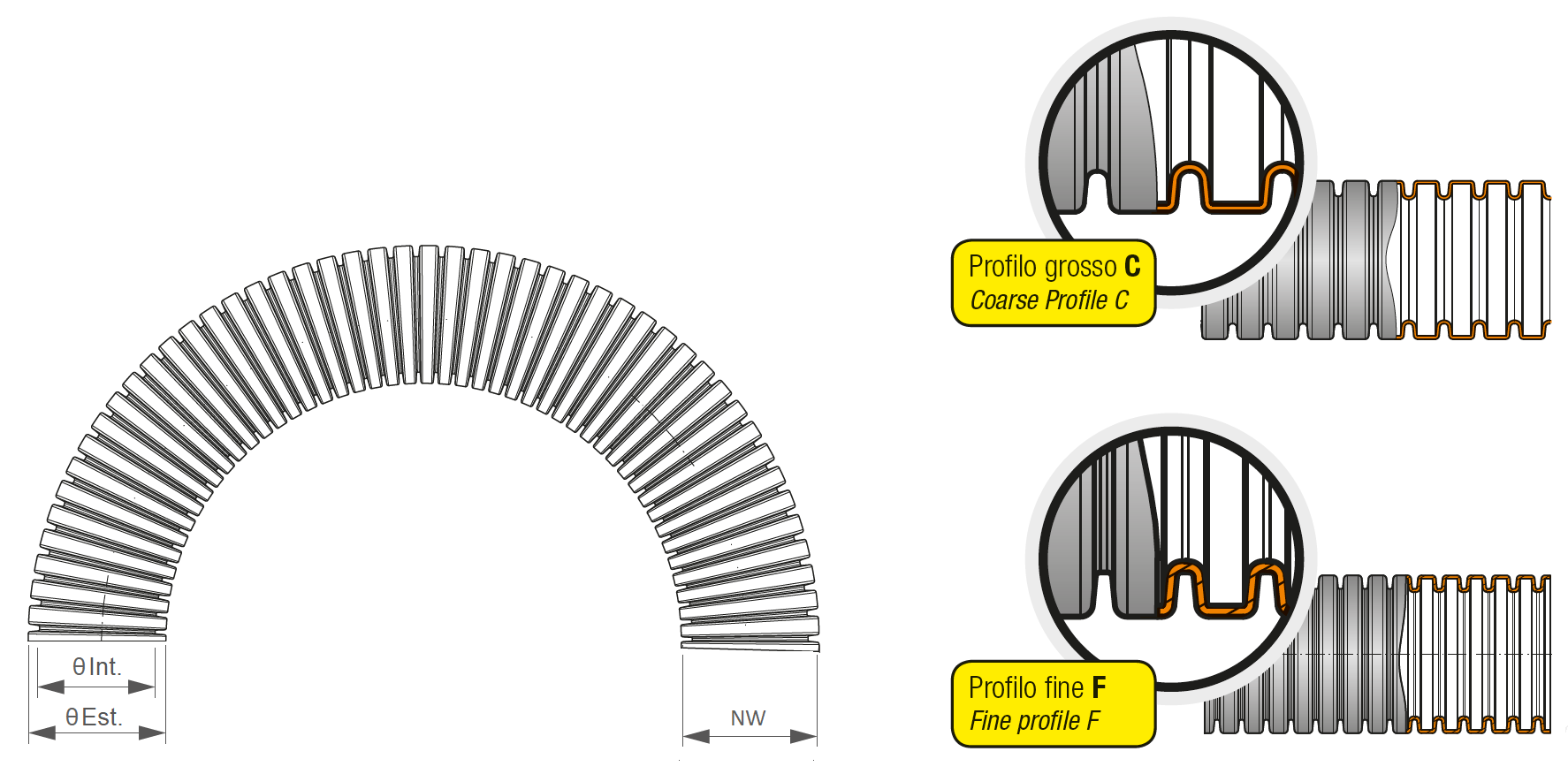

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polypropylene (PP MODS BS UV)
Color: Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

126.5

θ est(mm)

146.5

Color

Black

NW(mm)

125

Product code

PPUV-SC-125*

θ int(mm)

56.3

θ est(mm)

67.2

Color

Black

NW(mm)

56

Product code

PPUV-SC-56*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Black

NW(mm)

70

Product code

PPUV-SC-70*

θ int(mm)

91.3

θ est(mm)

106

Color

Black

NW(mm)

95

Product code

PPUV-SC-95*

θ int(mm)

6.6

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

PPUV-SF-07

θ int(mm)

9.8

θ est(mm)

12.8

Color

Black

NW(mm)

10

Product code

PPUV-SF-10

θ int(mm)

12.3

θ est(mm)

15.7

Color

Black

NW(mm)

12

Product code

PPUV-SF-12

θ int(mm)

16.6

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PPUV-SF-17

θ int(mm)

23.1

θ est(mm)

28.4

Color

Black

NW(mm)

23

Product code

PPUV-SF-23

θ int(mm)

28.9

θ est(mm)

34.5

Color

Black

NW(mm)

29

Product code

PPUV-SF-29

θ int(mm)

36.5

θ est(mm)

42.4

Color

Black

NW(mm)

36

Product code

PPUV-SF-36

θ int(mm)

47.5

θ est(mm)

54.4

Color

Black

NW(mm)

48

Product code

PPUV-SF-48

Characteristics

Operating temperature: – 40 °C / + 105 °C
Operating temperature IS FIP: – 40 °C / + 105 °C
Temperature (Short period) IS FIP: 150°C (500h), 165°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polypropylene (PP MODS BS UV)
Color: Black
Reference standard: EN IEC 61386-23
Classification codes EN IEC 61386: 2 4 5 3
Compressive strength: 320 N
Impact resistance: 6 J
Impact resistance at -25°C: 2 J
Tensile strength EN IEC 61386: 500 N
Halogen-Cadmium Free: Yes
Fire characteristic of the product UL 1696: Self-extinguishing
Fire classification UL94: V2
Self-extinguishing FMVSS 302: Self-extinguishing
Spread of fire EN IEC 61386: non flame propagating
Accelerated environmental resistance test (DIN EN ISO 4892-2: 2013-06): Compliant (5000h)
Vertical burning behavior (EN ISO 6941:2003): Self-extinguishing
UV and weathering performance IS FIP: Good (20 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Halogen free

License for transport of hazardous goods

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for rolling stock (halogen free) EN 45545-2
