Nylon and pvc conduits

Flexible corrugated conduit type PA6V2 HJT

Flexible corrugated conduit covered with glass fiber silicon elastomer IP66/IP67/IP68/IP69. The flexible PA6V2HJT conduit is manufactured in polyamide 6 BS (PA6 BS [V2]) in compliance with the norms EN IEC 61386-2-3 and covered with HJT-L fiberglass silicone elastomer. Usable not only for all the applications specified for PA6V2 conduit but also for thermic protection in an extreme environment, i.e. in presence of flames, liquid metal or glass sparkles, and water vapor. The external jacket with our HJT-L silicon elastomer can actually resist a temperature range between -60°C and +260°C or even up to +800°C for 20 minutes. The PA6V2HJT conduit is halogen and cadmium free and reduces toxicity to a minimum. Furthermore, it is flame retardant and it offers good resistance to UV rays, oils, fuels, and solvents. Resistant to high and low temperatures between -45°C and +120°C, the HJT-L jacket increases this resistance up to -60°C and +260°C. Self-extinguishing according to UL94 -V2, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

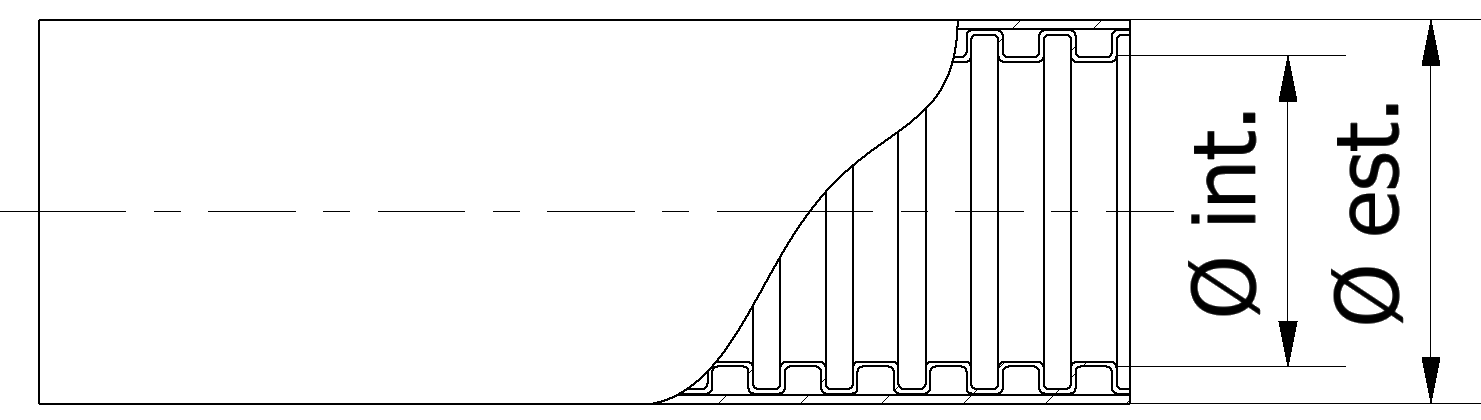

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: The Conduit in poliammide BS(PA6 BS) and recovered in PVC with conduit fiberglass silicone elastomer (HJT)
Color: Orange

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

6.3

θ est(mm)

10

Color

Orange

NW(mm)

7

Product code

PA6V2HJT207

θ int(mm)

9.6

θ est(mm)

12.8

Color

Orange

NW(mm)

10

Product code

PA6V2HJT210

θ int(mm)

12

θ est(mm)

15.8

Color

Orange

NW(mm)

12

Product code

PA6V2HJT212

θ int(mm)

16.7

θ est(mm)

21.2

Color

Orange

NW(mm)

17

Product code

PA6V2HJT217

θ int(mm)

22.6

θ est(mm)

28.5

Color

Orange

NW(mm)

23

Product code

PA6V2HJT223

θ int(mm)

29

θ est(mm)

34.5

Color

Orange

NW(mm)

29

Product code

PA6V2HJT229

θ int(mm)

36.5

θ est(mm)

42.5

Color

Orange

NW(mm)

36

Product code

PA6V2HJT236

θ int(mm)

47.5

θ est(mm)

54.5

Color

Orange

NW(mm)

48

Product code

PA6V2HJT248

Characteristics

Operating temperature: – 60 °C / + 260 °C
Degree of protection IP: IP66/IP67/IP68/IP69
Material: The Conduit in poliammide BS(PA6 BS) and recovered in PVC with conduit fiberglass silicone elastomer (HJT)
Color: Orange
Reference standard: EN IEC 61386-23
Classification codes EN IEC 61386: 2 2 5 6
Compressive strength: 320 N
Impact resistance at -25°C: 2 J
Impact resistance at +23°C: 1 J
Fire classification UL94: V2
Self-extinguishing FMVSS 302: Self-extinguishing
Fire hazardous level EN 45545-2: (HJT) Halgon free – HL1-HL2 requirement set R22, HL1-HL3 requirement set R23)
Self-extinguishing EN IEC 61386: Flame retardant
Good resistenza agli UV (HJT) : Compliant
HJT – Picchi a : » 30 min a 800°C, » 15 min a 1100°C, » 1 min a 1500°C

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
