Flexible corrugated conduit type PA6V0 HFF HFC

Heavy duty corrugated conduit IP66/IP67/IP68/IP69. The heavy-duty corrugated conduit PA6V0-HFF-HFC is manufactured in specially modified polyamide 6 (PA6 MOD V0) in compliance with the norms EN IEC 61386-2-3. Usable for cable protection applications where low fire hazard is mandatory. With its good complementary mechanical performances, this conduit suits technically highly demanding applications such as rolling stock and public transport equipment in general. The excellent self-extinguishing and low smoke generation characteristics are the main criteria for the selection of these products. They are made of highly fl ame retarded specially modified polyamide 6. Self-extinguishing and non-flame propagating in compliance with UL 1696, FMVSS 302, and EN IEC 61386, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

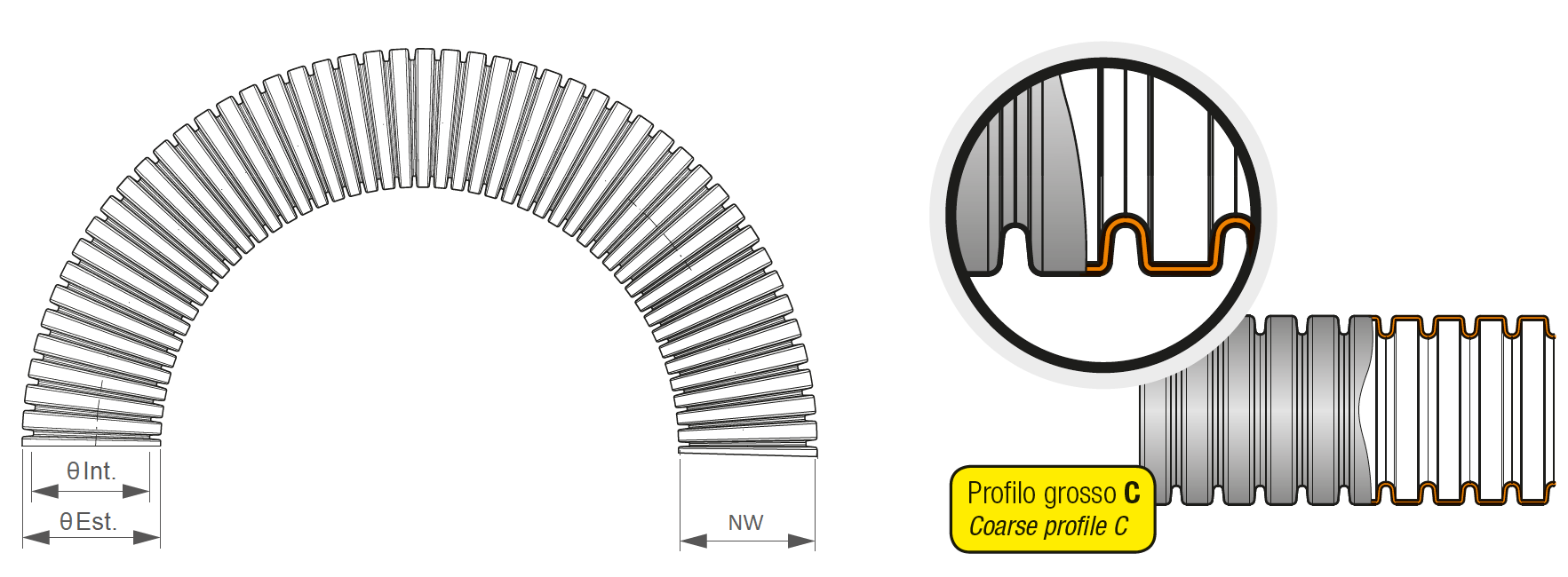

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 6 MOD V0 (PA6 MOD V0)
Color: Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

16.1

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PA6V0-HFC-17B

θ int(mm)

22

θ est(mm)

28.5

Color

Black

NW(mm)

23

Product code

PA6V0-HFC-23B

θ int(mm)

28.3

θ est(mm)

34.7

Color

Black

NW(mm)

29

Product code

PA6V0-HFC-29B

θ int(mm)

35.8

θ est(mm)

42.3

Color

Black

NW(mm)

36

Product code

PA6V0-HFC-36B

θ int(mm)

46.7

θ est(mm)

54.2

Color

Black

NW(mm)

48

Product code

PA6V0-HFC-48B

Characteristics

Operating temperature: – 45 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 165°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 (PA6 MOD V0)
Color: Black
Reference standard: EN IEC 61386-23
Classification codes EN IEC 61386: 3 4 5 4
Compressive strength: 750 N
Impact resistance: 6 /12..15 J
Impact resistance at -15°C: 2 J
Tensile strength EN IEC 61386: 500 /750 N
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >35%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL2 R22, HL3 R23
Spread of fire EN IEC 61386: non flame propagating
Vertical burning behavior (EN ISO 6941:2003): Self-extinguishing
UV and weathering performance IS FIP: Good (15 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for fire behavior of vechile interiors according to UNECE 118

Standards for rolling stock (halogen free) EN 45545-2
