Flexible corrugated conduit type PA6V0 FF FC

Flexible corrugated conduit IP66/IP67/IP68/IP69. The corrugated conduit PA6V0-FF-FC is manufactured in specially modified polyamide 6 (PA6 MOD V0 [V0] ) in compliance with the norms EN IEC 61386-2-3. Usable for cable protection applications where low fire hazard is mandatory. With its good complementary mechanical performances, this conduit suits technically highly demanding applications such as rolling stock and public transport equipment in general. The excellent self-extinguishing and low smoke generation characteristics are the main criteria for the selection of these products. They are made of highly fl ame retarded specially modified polyamide 6. Self-extinguishing and non-flame propagating in compliance with UL 1696, FMVSS 302, and EN IEC 61386, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

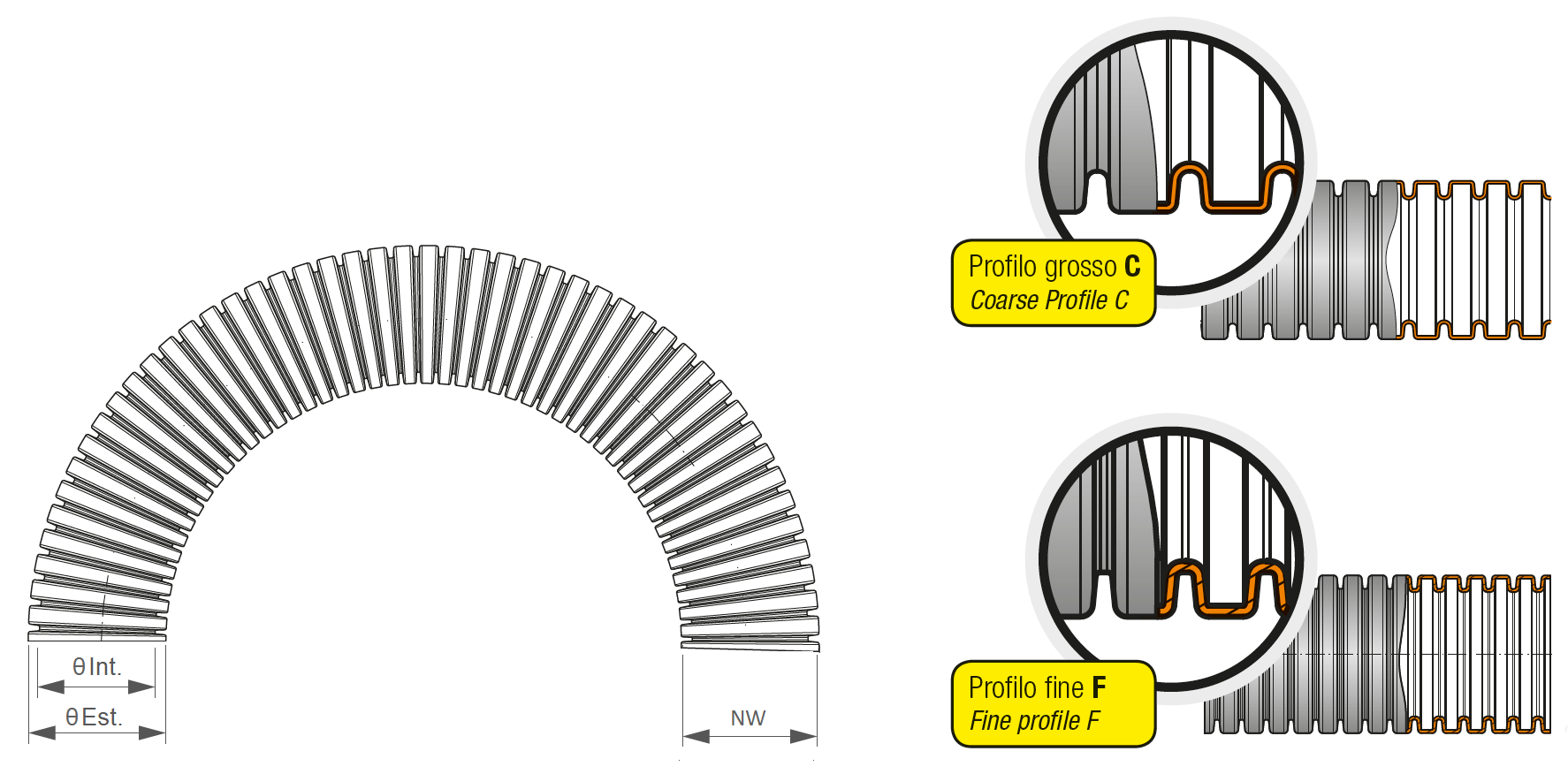

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 6 MOD V0(PA6 MOD V0)
Color: Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

126.5

θ est(mm)

146.5

Color

Black

NW(mm)

125

Product code

PA6V0-FC-125B*

θ int(mm)

126.5

θ est(mm)

146.5

Color

Grey

NW(mm)

125

Product code

PA6V0-FC-125G*

θ int(mm)

16.1

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PA6V0-FC-17B

θ int(mm)

16.1

θ est(mm)

21.1

Color

Grey

NW(mm)

17

Product code

PA6V0-FC-17G

θ int(mm)

22

θ est(mm)

28.4

Color

Black

NW(mm)

23

Product code

PA6V0-FC-23B

θ int(mm)

22

θ est(mm)

28.4

Color

Grey

NW(mm)

23

Product code

PA6V0-FC-23G

θ int(mm)

28.3

θ est(mm)

34.5

Color

Black

NW(mm)

29

Product code

PA6V0-FC-29B

θ int(mm)

28.3

θ est(mm)

34.5

Color

Grey

NW(mm)

29

Product code

PA6V0-FC-29G

θ int(mm)

35.8

θ est(mm)

42.2

Color

Black

NW(mm)

36

Product code

PA6V0-FC-36B

θ int(mm)

35.8

θ est(mm)

42.2

Color

Grey

NW(mm)

36

Product code

PA6V0-FC-36G

θ int(mm)

46.7

θ est(mm)

53.8

Color

Black

NW(mm)

48

Product code

PA6V0-FC-48B

θ int(mm)

46.7

θ est(mm)

53.8

Color

Grey

NW(mm)

48

Product code

PA6V0-FC-48G

θ int(mm)

56.3

θ est(mm)

67.2

Color

Black

NW(mm)

56

Product code

PA6V0-FC-56B*

θ int(mm)

56.3

θ est(mm)

67.2

Color

Grey

NW(mm)

56

Product code

PA6V0-FC-56G*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Black

NW(mm)

70

Product code

PA6V0-FC-70B*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Grey

NW(mm)

70

Product code

PA6V0-FC-70G*

θ int(mm)

91.3

θ est(mm)

106

Color

Black

NW(mm)

95

Product code

PA6V0-FC-95B*

θ int(mm)

91.3

θ est(mm)

106

Color

Grey

NW(mm)

95

Product code

PA6V0-FC-95G*

θ int(mm)

6.2

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

PA6V0-FF-07B

θ int(mm)

6.2

θ est(mm)

10

Color

Grey

NW(mm)

7

Product code

PA6V0-FF-07G

θ int(mm)

9.6

θ est(mm)

12.8

Color

Black

NW(mm)

10

Product code

PA6V0-FF-10B

θ int(mm)

9.6

θ est(mm)

12.8

Color

Grey

NW(mm)

10

Product code

PA6V0-FF-10G

θ int(mm)

12

θ est(mm)

15.7

Color

Black

NW(mm)

12

Product code

PA6V0-FF-12B

θ int(mm)

12

θ est(mm)

15.7

Color

Grey

NW(mm)

12

Product code

PA6V0-FF-12G

Characteristics

Operating temperature: – 45 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 165°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0(PA6 MOD V0)
Color: Black / Grey
Reference standard: EN IEC 61386-23
Classification codes EN IEC 61386: 2 4 5 4
Compressive strength: 320 N
Impact resistance: 6 J
Impact resistance at -45°C: 2 J
Tensile strength EN IEC 61386: 500 N
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >35%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22/R23
Spread of fire EN IEC 61386: non flame propagating
UV and weathering performance IS FIP: Average to good (5-10 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Association of eletrical, electronic and infromation technologies

License for transport of hazardous goods

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for fire behavior of vechile interiors according to UNECE 118

Standards for rolling stock (halogen free) EN 45545-2
