Nylon and pvc conduits

Flexible corrugated conduit type PA6V0

Flexible corrugated conduit IP66/IP67/IP68/IP69. The flexible PA6V0 conduit is manufactured in polyamide 6 PA6 [V0] in compliance with the norms EN IEC 61386-2-3 and is flame-resistant thanks to specific additives. Usable for machine building, railways, plant construction, and various industrial applications where it is necessary a good resistance to flames, compression, traction, torsion, abrasion, and contact with chemical agents. This conduit is halogen free and reduces at minimum toxicity. It is fl ame-retardant and displays good resistance to UV rays, oils, fuels, and solvents. Usage temperature range: from –40°C to 120°C. Self-extinguishing in compliance with the norms UL94 – V0, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

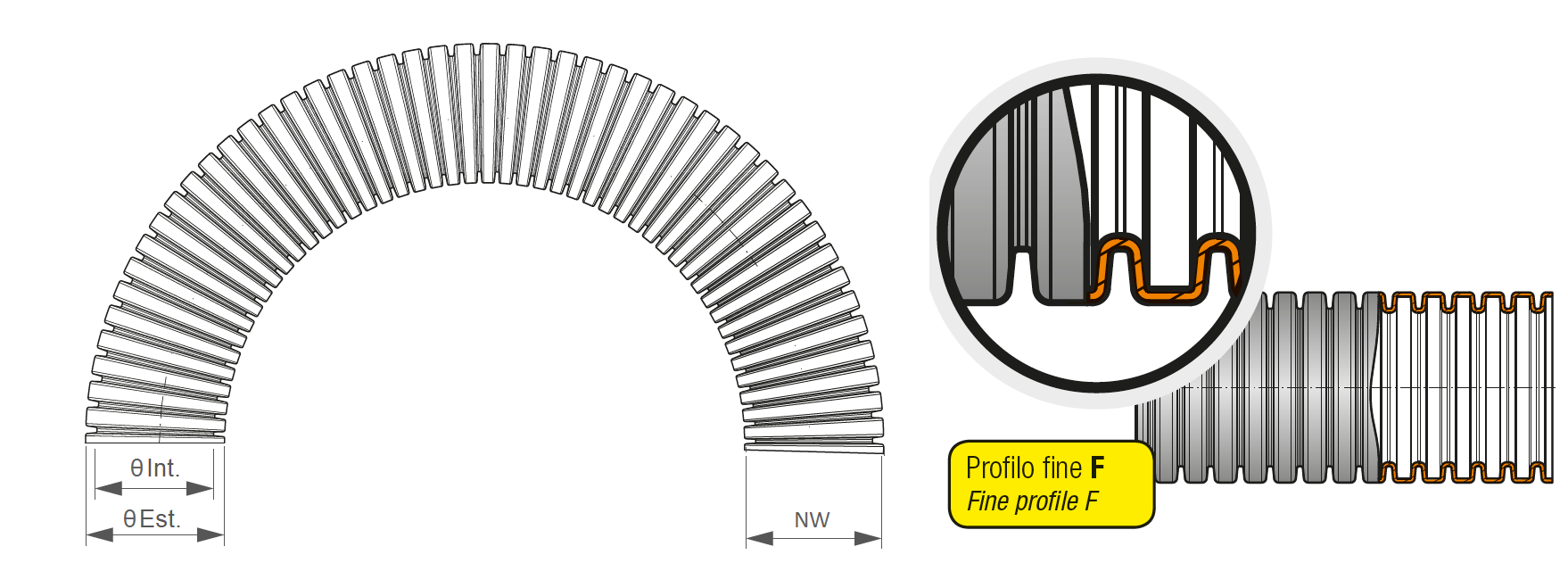

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 6 (PA6)
Color: Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

6.3

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

PA6V0207

θ int(mm)

9.6

θ est(mm)

12.8

Color

Black

NW(mm)

10

Product code

PA6V0210

θ int(mm)

12

θ est(mm)

15.8

Color

Black

NW(mm)

12

Product code

PA6V0212

θ int(mm)

16.7

θ est(mm)

21.2

Color

Black

NW(mm)

17

Product code

PA6V0217

θ int(mm)

22.6

θ est(mm)

28.5

Color

Black

NW(mm)

23

Product code

PA6V0223

θ int(mm)

29

θ est(mm)

34.5

Color

Black

NW(mm)

29

Product code

PA6V0229

θ int(mm)

36.5

θ est(mm)

42.5

Color

Black

NW(mm)

36

Product code

PA6V0236

θ int(mm)

47.5

θ est(mm)

54.5

Color

Black

NW(mm)

48

Product code

PA6V0248

Characteristics

Operating temperature: – 40 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 120°C (3000h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6(PA6)
Color: Black
Reference standard: EN IEC 61386-23, UL 1696
Classification codes EN IEC 61386: 2 2 4 4
Compressive strength: 320 N
Impact resistance at -25°C: 2 J
Impact resistance at +23°C: 1 J
Fire classification UL94: V0
Self-extinguishing FMVSS 302: Self-extinguishing
Spread of fire EN IEC 61386: non flame propagating

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
