Flange EU2

Flanges for assembling on the wall. They are used to connect with ducts or wherever it is necessary connection without occupying internal spaces. Connection to any type of fitting for flexible/rigid pipe or cablegland with ISO METRIC thread in compliance with the norm EN IEC 60423 is possible. Manufactured in nickel-plated brass, ensures IP 67 due to its O-ring inserted into the specific rail created on the adherence to the fixing surface.

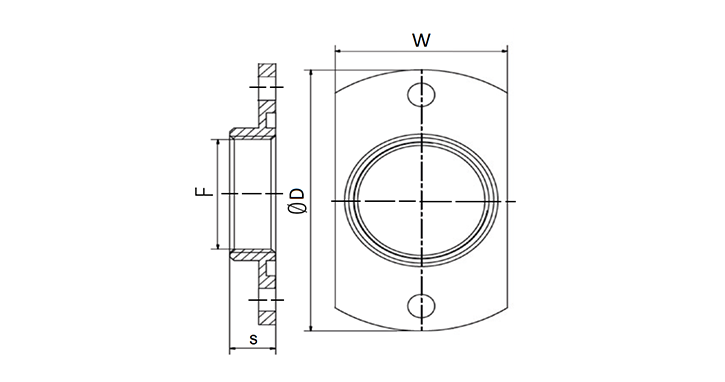

F – Thread size
W – Flange width
θ D – Maximum outside diameter of the flange
S – Flange thickness
Material: Nickel plated brass
Color: Nickel

S(mm)

S(mm)

Select Thread(F)

W(mm)

W(mm)

D(mm)

D(mm)

Product code

S(mm)

11

Thread(F)

Metrico (ISO 965)

Size(F)

M12x1,5

W(mm)

22

D(mm)

44

Product code

P75212

S(mm)

11

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

W(mm)

24.7

D(mm)

49

Product code

P75216

S(mm)

11

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

W(mm)

28.5

D(mm)

54

Product code

P75220

S(mm)

11

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

W(mm)

34

D(mm)

59

Product code

P75225

S(mm)

11

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

W(mm)

41.7

D(mm)

73

Product code

P75232

S(mm)

11

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

W(mm)

48.4

D(mm)

83

Product code

P75240

S(mm)

14

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

W(mm)

59.7

D(mm)

93

Product code

P75250

S(mm)

14

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

W(mm)

72

D(mm)

103

Product code

P75263

Characteristics

Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67
Material: Nickel plated brass
Color: Nickel
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
