Fittings for Conduits
Fitting type GG MT NY
Fittings for connection between metal and nylon conduits. They can be used where it is necessary to pass with an electric line through a zone where fl exible conduit usage is mandatory. Manufactured in nickel-plated brass, the protection degree in compliance with EN IEC 61386 is IP67 and it is ensured by the sealing ring tightened on the conduit when you tighten the nut. In this way, it ensures a perfect mechanical resistance to traction, torsion and vibrations.

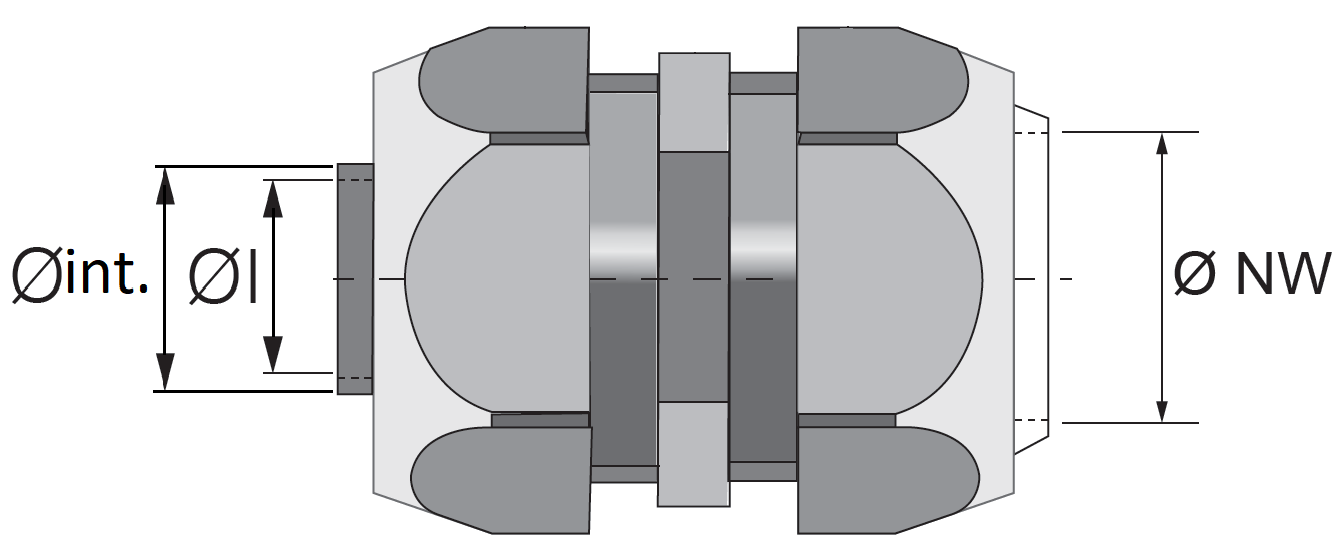

θ int.- Internal diameter of the conduit
NW – Nominal diameter of the conduit
θ I – Maximum cable passage
Material: Nickel plated brass
Color: Nickel
θ int(mm)
10
Material
Nickel plated brass
NW(mm)
7
θ I(mm)
6.3
Product code
P82010
CAD
θ int(mm)
12
Material
Nickel plated brass
NW(mm)
10
θ I(mm)
9.6
Product code
P82012
CAD
θ int(mm)
15.5
Material
Nickel plated brass
NW(mm)
12
θ I(mm)
12
Product code
P82016
CAD
θ int(mm)
20.5
Material
Nickel plated brass
NW(mm)
17
θ I(mm)
16.7
Product code
P82021
CAD
θ int(mm)
26.5
Material
Nickel plated brass
NW(mm)
23
θ I(mm)
22.6
Product code
P82027
CAD
θ int(mm)
34.5
Material
Nickel plated brass
NW(mm)
29
θ I(mm)
29
Product code
P82035
CAD
θ int(mm)
39.5
Material
Nickel plated brass
NW(mm)
36
θ I(mm)
36.5
Product code
P82040
CAD
θ int(mm)
50.5
Material
Nickel plated brass
NW(mm)
48
θ I(mm)
47.5
Product code
P82050
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.
Certifications
Registration, Evaluation, Authorization and Restriction of Chemicals
Restriction of Hazardous Substances directive
