Fittings for Conduits

Fitting type GFP

PVC universal fittings for our conduits series GFP and GFPP, GFPPXS. It is classified according to norms EN IEC 61386 “self extinguishing with IP67 rating”. Locking of fitting on conduit it is realized throught tightening of locknut which screwing on conduit, deforms it assuring an excellent mechanical tight. This fitting can be used both in fixed thread condition and in swivel thread one according to necessity. Can be supplied with threads: GAS ISO228 – PG DIN 40430 – METRIC ISO 965.

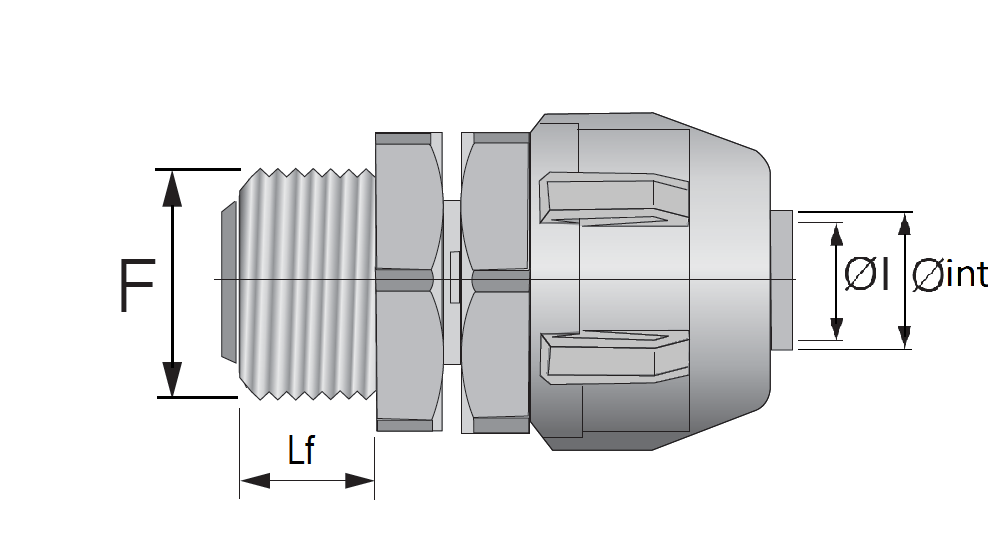

θ int.- Internal diameter of the conduit
θ I – Maximum cable passage
F – Thread Type and Thread Size
Lf – Thread length
Material: PVC
Color: Grey

θ int(mm)

θ int(mm)

Select Thread(F)

θ I(mm)

θ I(mm)

Lf(mm)

Lf(mm)

Product code

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG7

θ I(mm)

8

Lf(mm)

11

Product code

81001

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG9

θ I(mm)

8

Lf(mm)

11

Product code

81002

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG11

θ I(mm)

8

Lf(mm)

11

Product code

81003

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

θ I(mm)

8

Lf(mm)

11

Product code

81004

θ int(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG9

θ I(mm)

10

Lf(mm)

11

Product code

81005

θ int(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG11

θ I(mm)

10

Lf(mm)

13

Product code

81006

θ int(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

θ I(mm)

10

Lf(mm)

13

Product code

81007

θ int(mm)

16

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

θ I(mm)

13

Lf(mm)

13.5

Product code

81008

θ int(mm)

16

Thread(F)

PG (DIN 40430)

Size(F)

PG16

θ I(mm)

13

Lf(mm)

13.5

Product code

81009

θ int(mm)

21

Thread(F)

PG (DIN 40430)

Size(F)

PG16

θ I(mm)

18

Lf(mm)

13.5

Product code

81010

θ int(mm)

21

Thread(F)

PG (DIN 40430)

Size(F)

PG21

θ I(mm)

18

Lf(mm)

13.5

Product code

81011

θ int(mm)

27

Thread(F)

PG (DIN 40430)

Size(F)

PG29

θ I(mm)

25

Lf(mm)

16

Product code

81012

θ int(mm)

35

Thread(F)

PG (DIN 40430)

Size(F)

PG36

θ I(mm)

33

Lf(mm)

17

Product code

81013

θ int(mm)

40

Thread(F)

PG (DIN 40430)

Size(F)

PG36

θ I(mm)

38

Lf(mm)

19

Product code

81014

θ int(mm)

51

Thread(F)

PG (DIN 40430)

Size(F)

PG48

θ I(mm)

48

Lf(mm)

19

Product code

81015

θ int(mm)

10

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

θ I(mm)

8

Lf(mm)

11

Product code

81032

θ int(mm)

10

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

θ I(mm)

8

Lf(mm)

11

Product code

81033

θ int(mm)

12

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

θ I(mm)

10

Lf(mm)

11

Product code

81034

θ int(mm)

12

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

θ I(mm)

10

Lf(mm)

13

Product code

81035

θ int(mm)

16

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

θ I(mm)

13

Lf(mm)

13.5

Product code

81036

θ int(mm)

21

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

θ I(mm)

18

Lf(mm)

13.5

Product code

81037

θ int(mm)

27

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

θ I(mm)

25

Lf(mm)

16

Product code

81038

θ int(mm)

35

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

θ I(mm)

33

Lf(mm)

17

Product code

81039

θ int(mm)

40

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/2

θ I(mm)

38

Lf(mm)

19

Product code

81040

θ int(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M12x1,5

θ I(mm)

8

Lf(mm)

11

Product code

81041

θ int(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

θ I(mm)

10

Lf(mm)

11

Product code

81042

θ int(mm)

16

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

θ I(mm)

13

Lf(mm)

13.5

Product code

81043

θ int(mm)

21

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

θ I(mm)

18

Lf(mm)

13.5

Product code

81044

θ int(mm)

27

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

θ I(mm)

25

Lf(mm)

16

Product code

81045

θ int(mm)

35

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

θ I(mm)

33

Lf(mm)

17

Product code

81046

θ int(mm)

40

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

θ I(mm)

38

Lf(mm)

19

Product code

81047

θ int(mm)

51

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

θ I(mm)

48

Lf(mm)

19

Product code

81048

θ int(mm)

51

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

θ I(mm)

48

Lf(mm)

19

Product code

81051

Characteristics

Operating temperature: – 15 °C / + 70 °C
Degree of protection IP: IP67
Material: PVC
Color: Grey
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 3 3 3 1
Compressive strength: 320 N
Impact resistance: 1 J
Self-extinguishing EN IEC 61386: Flame retardant
