Fittings for Conduits

Fitting type cable gland AM RP MF

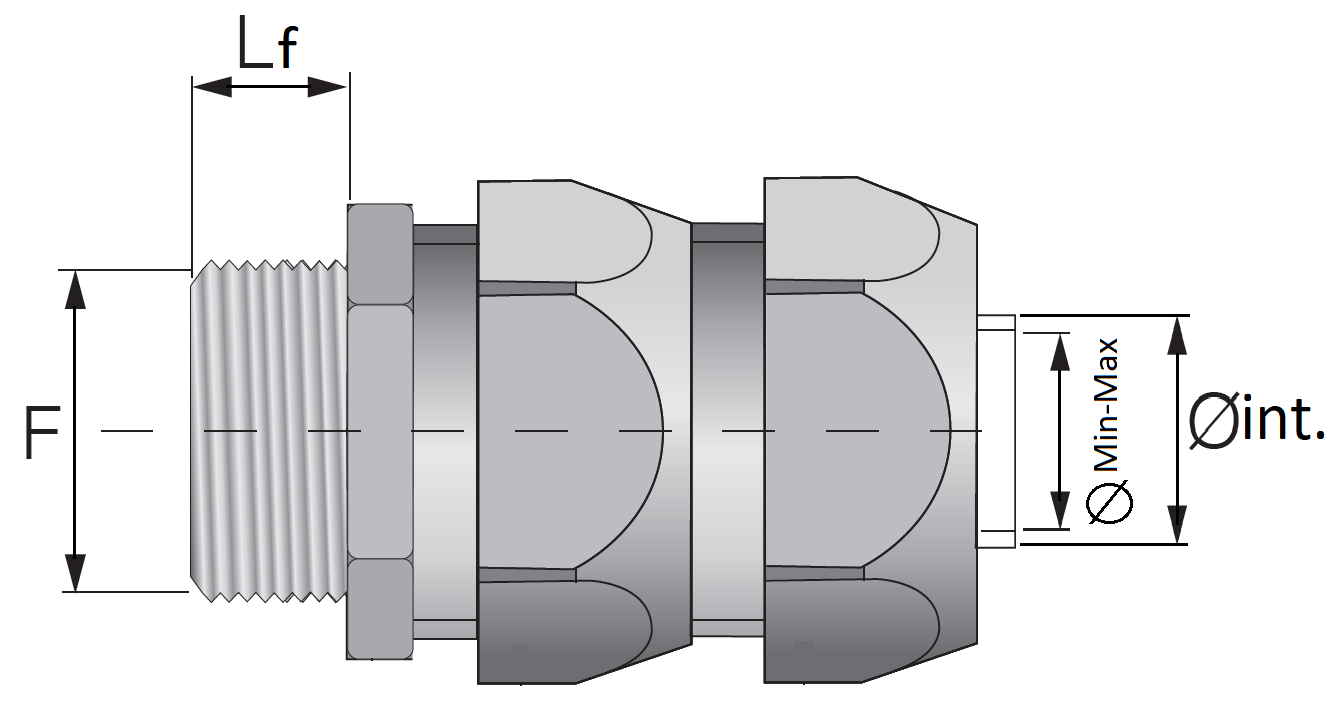

Fitting cable gland with fixed male thread for flexible conduit IP66/IP67/IP68. It can be used wherever it is necessary to block a cable with a cable gland and to protect it, at the same time, into a covered flexible metal conduit. The thread swivel is useful for installations that need to support the continuous movement of the conduit together with cables (torsion or movement). It can be used wherever there is a threaded hole, by screwing it directly or a passing hole by means of a locknut on the opposite side. They are made up by nickel-plated brass and IP rating, certified according to norms EN IEC 61386, between fitting and cable is IP66 / IP67 / IP68 and it is assured by a thermosetting elastomer rubber that tightens on cable and by sealing ring that tightens on conduit when you tighten nut, so that you can assure a perfect mechanical resistance to traction, torsion and vibration. Instead the electrical continuity is assured by an internal ferrule screwing on the internal metal structure of the conduit and covers the whole edge of the flexible conduit to protect cable passage.

θ int.- Internal diameter of the conduit
θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Lf – Thread length
Types of threads: ISO Metric (ISO 965), GAS (ISO 228), PG (DIN 40430), NPT (ANSI/ASME B1.20.1), GAS Conico (ISO 7-1) – R
Material: Nickel plated brass
Color: Nickel

θ int(mm)

θ int(mm)

Select Thread(F)

Lf(mm)

Lf(mm)

θ min(mm)

θ min(mm)

θ max(mm)

θ max(mm)

Product code

CAD

θ int(mm)

10

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/4”

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

50001-TR.210

CAD

CAD 3D

θ int(mm)

10

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

50002-TR.210

CAD

CAD 3D

θ int(mm)

12

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Product code

50003-TR.212

CAD

CAD 3D

θ int(mm)

12

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Product code

50004-TR.212

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

50005-TR.216

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Product code

50006-TR.221

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Product code

50007-TR.227

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Product code

50008-TR.235

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/2

Lf(mm)

14

θ min(mm)

30.5

θ max(mm)

36

Product code

50009-TR.240

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

Lf(mm)

14

θ min(mm)

43

θ max(mm)

48.5

Product code

50010-TR.250

CAD

CAD 3D

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG7

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

50021-TR.210

CAD

CAD 3D

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

50022-TR.210

CAD

CAD 3D

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

50023-TR.210

CAD

CAD 3D

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

50024-TR.210

CAD

CAD 3D

θ int(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Product code

50025-TR.212

CAD

CAD 3D

θ int(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Product code

50026-TR.212

CAD

CAD 3D

θ int(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Product code

50027-TR.212

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

50028-TR.216

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

50029-TR.216

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Product code

50030-TR.221

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Product code

50031-TR.227

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Product code

50032-TR.235

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

PG (DIN 40430)

Size(F)

PG42

Lf(mm)

14

θ min(mm)

30.5

θ max(mm)

36

Product code

50033-TR.240

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

PG (DIN 40430)

Size(F)

PG48

Lf(mm)

14

θ min(mm)

43

θ max(mm)

48.5

Product code

50034-TR.250

CAD

CAD 3D

θ int(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

50041-TR.210

CAD

CAD 3D

θ int(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Product code

50042-TR.212

CAD

CAD 3D

θ int(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Product code

50043-TR.212

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

50044-TR.216

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Product code

50045-TR.221

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Product code

50046-TR.227

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Product code

50047-TR.235

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

14

θ min(mm)

30.5

θ max(mm)

36

Product code

50048-TR.240

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Lf(mm)

14

θ min(mm)

43

θ max(mm)

48.5

Product code

50049-TR.250

CAD

CAD 3D

θ int(mm)

10

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 1/4”

Lf(mm)

11.5

θ min(mm)

5

θ max(mm)

8

Product code

50101-TR.210

CAD

CAD 3D

θ int(mm)

10

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 3/8”

Lf(mm)

11.5

θ min(mm)

5

θ max(mm)

8

Product code

50102-TR.210

CAD

CAD 3D

θ int(mm)

12

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 3/8”

Lf(mm)

11.5

θ min(mm)

8

θ max(mm)

10.5

Product code

50103-TR.212

CAD

CAD 3D

θ int(mm)

12

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 1/2”

Lf(mm)

15

θ min(mm)

8

θ max(mm)

10.5

Product code

50104-TR.212

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 1/2”

Lf(mm)

15

θ min(mm)

7.5

θ max(mm)

13

Product code

50105-TR.216

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 3/4”

Lf(mm)

15

θ min(mm)

12.5

θ max(mm)

18

Product code

50106-TR.221

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 1”

Lf(mm)

19

θ min(mm)

17.5

θ max(mm)

23

Product code

50107-TR.227

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 1” 1/4

Lf(mm)

21

θ min(mm)

27.5

θ max(mm)

33

Product code

50108-TR.235

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 1” 1/2

Lf(mm)

21

θ min(mm)

30.5

θ max(mm)

36

Product code

50109-TR.240

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

NPT (ANSI/ASME B1.20.1)

Size(F)

NPT 2”

Lf(mm)

23

θ min(mm)

43

θ max(mm)

48.5

Product code

50110-TR.250

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

50127-TR.216

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Product code

50128-TR.221

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Product code

50130-TR.227

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

30

Product code

50131-TR.235

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

14

θ min(mm)

30.5

θ max(mm)

36

Product code

50132-TR.240

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

PG (DIN 40430)

Size(F)

PG42

Lf(mm)

14

θ min(mm)

43

θ max(mm)

48.5

Product code

50133-TR.250

CAD

CAD 3D

θ int(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M12x1,5

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

50141-TR.210

CAD

CAD 3D

θ int(mm)

10

Thread(F)

GAS Conico (ISO 7-1)

Size(F)

R 1/4”

Lf(mm)

11.5

θ min(mm)

5

θ max(mm)

8

Product code

50183-TR.210

CAD

CAD 3D

θ int(mm)

12

Thread(F)

GAS Conico (ISO 7-1)

Size(F)

R 3/8”

Lf(mm)

11.5

θ min(mm)

8

θ max(mm)

10.5

Product code

50184-TR.212

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

GAS Conico (ISO 7-1)

Size(F)

R 1/2”

Lf(mm)

15

θ min(mm)

7.5

θ max(mm)

13

Product code

50185-TR.216

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

GAS Conico (ISO 7-1)

Size(F)

R 3/4”

Lf(mm)

15

θ min(mm)

12.5

θ max(mm)

18

Product code

50186-TR.221

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

GAS Conico (ISO 7-1)

Size(F)

R 1”

Lf(mm)

19

θ min(mm)

17.5

θ max(mm)

23

Product code

50187-TR.227

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

GAS Conico (ISO 7-1)

Size(F)

R 1” 1/4

Lf(mm)

21

θ min(mm)

27.5

θ max(mm)

33

Product code

50188-TR.235

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

GAS Conico (ISO 7-1)

Size(F)

R 1” 1/2

Lf(mm)

21

θ min(mm)

30.5

θ max(mm)

36

Product code

50189-TR.240

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

GAS Conico (ISO 7-1)

Size(F)

R 2”

Lf(mm)

23

θ min(mm)

43

θ max(mm)

48.5

Product code

50190-TR.250

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

50543-TR.216

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

50544-TR.216

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

16

Product code

50545-TR.221

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

21

Product code

50546-TR.227

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Product code

50547-TR.227

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

14

θ min(mm)

30.5

θ max(mm)

36

Product code

50548-TR.240

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

14

θ min(mm)

43

θ max(mm)

45

Product code

50549-TR.250

CAD

CAD 3D

Characteristics

Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67/IP68
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 4 4 4 3
Tensile strength: 1000 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings and traction test (cable anchoring for unarmoured cable - cable retention class B) and shore tests for the sealing rubber in accordance with EN / IEC 62444 on all closed systems consisting of cable glands.

Certifications

Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive

Related products

It may also interest you

Read our articles.
