Fittings for Conduits
Fitting type AM MF CURVO
Fitting variable angle with male thread for flexible conduit. This is an EURO 2000’s REGISTERED INVENTION PATENT n. MI 2004A000698 that can be used wherever there is a obliged passage of cables. The advantage of using the variable degree is the fact that you are not obliged to use the traditional 45° or 90°, that often do not represent the perfect curve. It can be used wherever there is a threaded hole, by screwing it directly or a passing hole by means of a locknut on the opposite side. They are made up by nickel-plated brass and inox AISI 304, the degree of protection certified according to norms EN IEC 61386 between fitting and conduit is IP67 and it is assured by a sealing ring that tightens on the conduit when you tighten the nut, so that you can assure a perfect mechanical resistance to traction, torsion and vibration. Instead the electrical continuity is assured by an internal ferrule screwing on the internal metal structure of the conduit and covering the whole edge of the flexible conduit to protect cable passage.

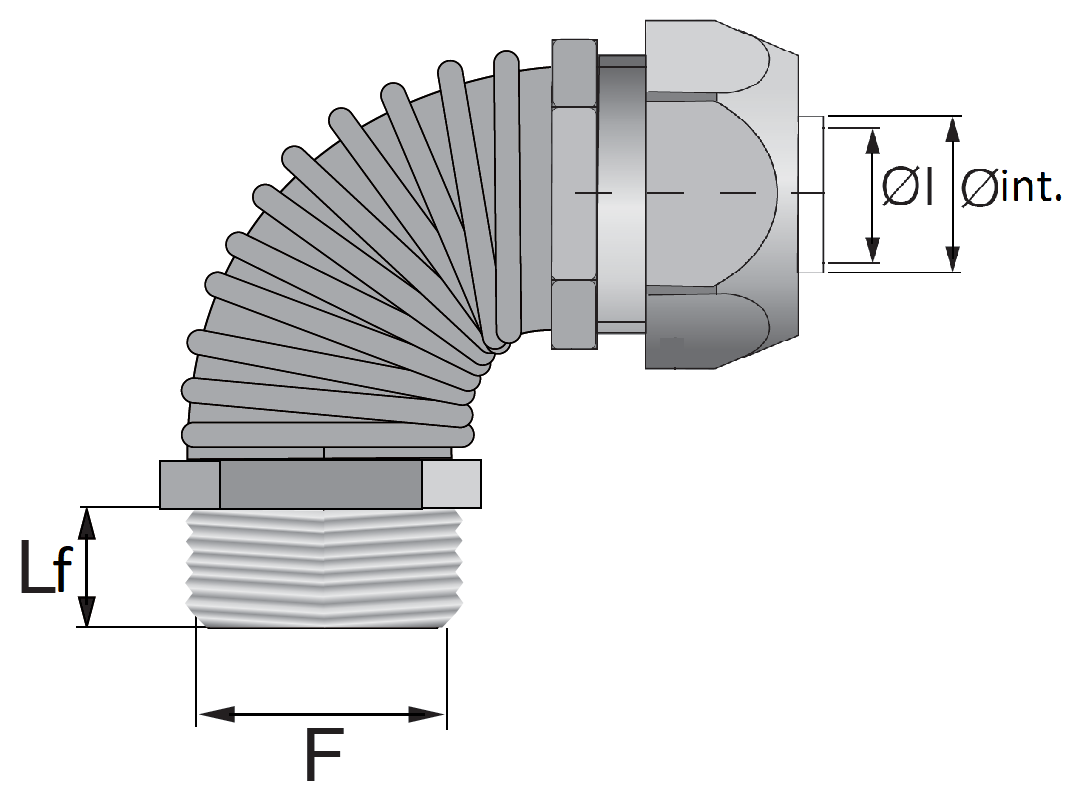

θ int.- Internal diameter of the conduit
θ I – Maximum cable passage
F – Thread Type and Thread Size
Lf – Thread length
Material: Nickel plated brass
Color: Nickel
θ int(mm)
10
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1/4”
θ I(mm)
8.5
Lf(mm)
9
Product code
53101
CAD
θ int(mm)
10
Thread(F)
GAS (ISO 228)
Size(F)
GAS 3/8”
θ I(mm)
8.5
Lf(mm)
9
Product code
53102
CAD
θ int(mm)
12
Thread(F)
GAS (ISO 228)
Size(F)
GAS 3/8”
θ I(mm)
10.5
Lf(mm)
9
Product code
53103
CAD
θ int(mm)
12
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1/2”
θ I(mm)
10.5
Lf(mm)
9
Product code
53104
CAD
θ int(mm)
15.5
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1/2”
θ I(mm)
14
Lf(mm)
9
Product code
53105
CAD
θ int(mm)
20.5
Thread(F)
GAS (ISO 228)
Size(F)
GAS 3/4”
θ I(mm)
19
Lf(mm)
9
Product code
53106
CAD
θ int(mm)
26.5
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1”
θ I(mm)
24.5
Lf(mm)
11
Product code
53107
CAD
θ int(mm)
34.5
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1” 1/4
θ I(mm)
32.5
Lf(mm)
11
Product code
53108
CAD
θ int(mm)
39.5
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1” 1/2
θ I(mm)
37.5
Lf(mm)
14
Product code
53109
CAD
θ int(mm)
50.5
Thread(F)
GAS (ISO 228)
Size(F)
GAS 2”
θ I(mm)
48.5
Lf(mm)
14
Product code
53110
CAD
θ int(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG7
θ I(mm)
8.5
Lf(mm)
9
Product code
53121
CAD
θ int(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG9
θ I(mm)
8.5
Lf(mm)
9
Product code
53122
CAD
θ int(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG11
θ I(mm)
8.5
Lf(mm)
9
Product code
53123
CAD
θ int(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG11
θ I(mm)
10.5
Lf(mm)
9
Product code
53124
CAD
θ int(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG13,5
θ I(mm)
10.5
Lf(mm)
9
Product code
53125
CAD
θ int(mm)
15.5
Thread(F)
PG (DIN 40430)
Size(F)
PG13,5
θ I(mm)
14
Lf(mm)
9
Product code
53126
CAD
θ int(mm)
15.5
Thread(F)
PG (DIN 40430)
Size(F)
PG16
θ I(mm)
14
Lf(mm)
9
Product code
53127
CAD
θ int(mm)
20.5
Thread(F)
PG (DIN 40430)
Size(F)
PG21
θ I(mm)
19
Lf(mm)
9
Product code
53128
CAD
θ int(mm)
26.5
Thread(F)
PG (DIN 40430)
Size(F)
PG29
θ I(mm)
24.5
Lf(mm)
11
Product code
53129
CAD
θ int(mm)
34.5
Thread(F)
PG (DIN 40430)
Size(F)
PG36
θ I(mm)
32.5
Lf(mm)
11
Product code
53130
CAD
θ int(mm)
39.5
Thread(F)
PG (DIN 40430)
Size(F)
PG42
θ I(mm)
37.5
Lf(mm)
14
Product code
53131
CAD
θ int(mm)
50.5
Thread(F)
PG (DIN 40430)
Size(F)
PG48
θ I(mm)
48.5
Lf(mm)
14
Product code
53132
CAD
θ int(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
θ I(mm)
8.5
Lf(mm)
9
Product code
53141
CAD
θ int(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
θ I(mm)
10.5
Lf(mm)
9
Product code
53142
CAD
θ int(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
θ I(mm)
10.5
Lf(mm)
9
Product code
53143
CAD
θ int(mm)
15.5
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
θ I(mm)
14
Lf(mm)
9
Product code
53144
CAD
θ int(mm)
20.5
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
θ I(mm)
19
Lf(mm)
9
Product code
53145
CAD
θ int(mm)
26.5
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
θ I(mm)
24.5
Lf(mm)
11
Product code
53146
CAD
θ int(mm)
34.5
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
θ I(mm)
32.5
Lf(mm)
11
Product code
53147
CAD
θ int(mm)
39.5
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
θ I(mm)
37.5
Lf(mm)
14
Product code
53148
CAD
θ int(mm)
50.5
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
θ I(mm)
48.5
Lf(mm)
14
Product code
53149
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 4 4 4 3
Tensile strength: 1000 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.
