Fittings for Conduits

Fitting type AM GG CURVE

Variable angle connector for the conduits to conduit. This is an EURO 2000’s REGISTERED INVENTION PATENT n. MI 2004A000698 that can be used wherever it is necessary to bend the conduit more than how it is normally allowed by the conduit itself. It is made of nickel-plated brass and the degree of protection is certified according to norms EN IEC 61386 between fitting and conduit is IP 67 and it is assured by a sealing ring that tightens on the conduit when you tighten the nut, so that you can assure a perfect mechanical resistance to traction, torsion and vibration. Instead the electrical continuity is assured by an internal ferrule screwing on the internal metal structure of the conduit and covering the whole edge of the flexible conduit to protect cables.

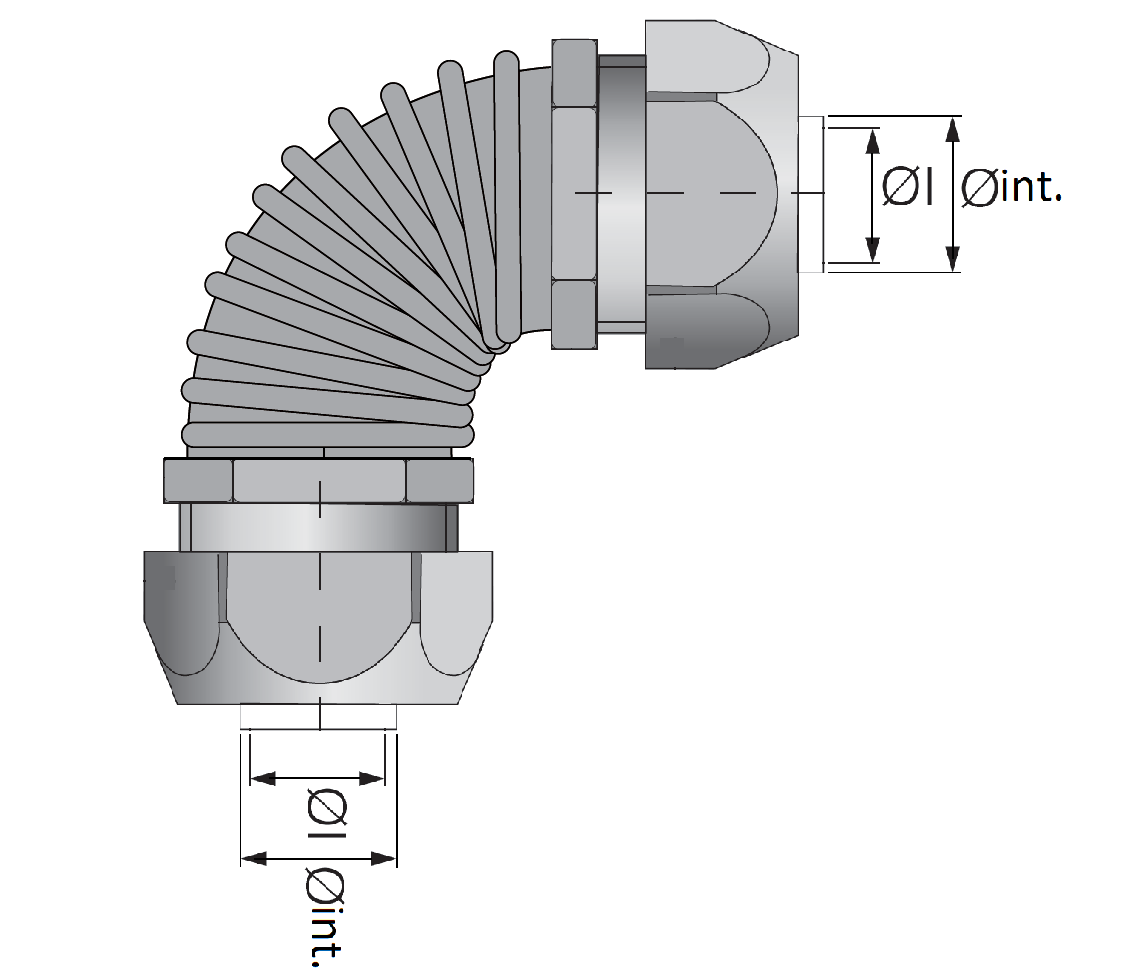

θ int.- Internal diameter of the conduit
θ I – Maximum cable passage
L – Length of fitting
Color: Nickel

θ int(mm)

θ int(mm)

θ I(mm)

θ I(mm)

L(mm)

L(mm)

Product code

CAD

θ int(mm)

10

θ I(mm)

8.5

L(mm)

85

Product code

53151

CAD

CAD 3D

θ int(mm)

12

θ I(mm)

10.5

L(mm)

110

Product code

53152

CAD

CAD 3D

θ int(mm)

15.5

θ I(mm)

14

L(mm)

120

Product code

53153

CAD

CAD 3D

θ int(mm)

20.5

θ I(mm)

19

L(mm)

135

Product code

53154

CAD

CAD 3D

θ int(mm)

26.5

θ I(mm)

24.5

L(mm)

160

Product code

53155

CAD

CAD 3D

θ int(mm)

34.5

θ I(mm)

32.5

L(mm)

200

Product code

53156

CAD

CAD 3D

θ int(mm)

39.5

θ I(mm)

37.5

L(mm)

250

Product code

53157

CAD

CAD 3D

θ int(mm)

50.5

θ I(mm)

48.5

L(mm)

310

Product code

53158

CAD

CAD 3D

Characteristics

Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 4 4 4 3
Tensile strength: 1000 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
