Divisible corrugated conduit type PA6HBL S

Slit light flexible longitudinally cut divisible conduit IP44. The slitlight flexible PA6HBLS conduit is manufactured in polyamide 6 (PA6) in compliance with the norms EN IEC 61386-2-3. Longitudinally cut divisible conduits have been developed in order to add new cables into an existing installation without disconnecting other cables already installed. Usable for electrical plants on the switchboard and industrial installations where it is necessary good mechanical flexibility and resistance to abrasion and self-recovering if crushed. Usage temperature range: from –40°C to +120°C. The chemical structure of this product makes it resistant to fuels, mineral oils, aging, greases, alkaline substances, UV-rays, and the most common solvents. It is fl ame-retardant, halogen-free, and reduces smoke density and toxicity during combustion. Self-extinguishing in compliance with the norms UL94 – HB, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

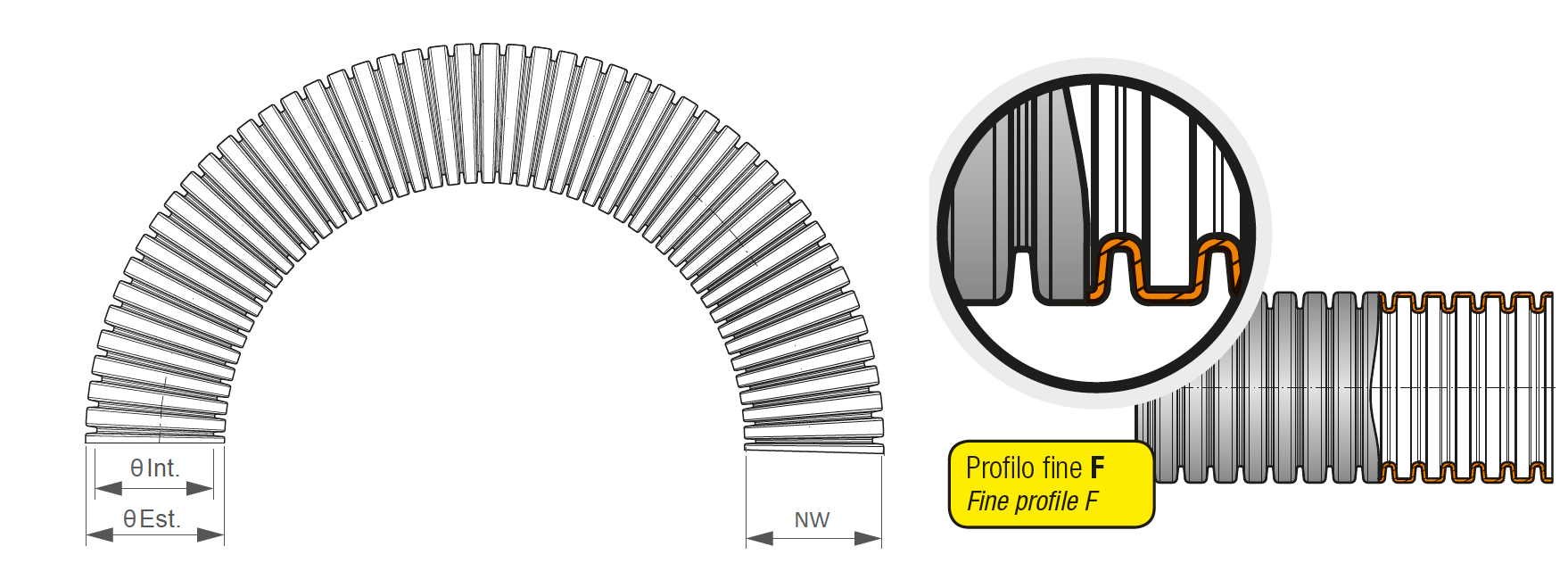

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 6 (PA6)
Color: Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

6.8

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

PA6HBLS207

θ int(mm)

10

θ est(mm)

12.8

Color

Black

NW(mm)

10

Product code

PA6HBLS210

θ int(mm)

12.5

θ est(mm)

15.8

Color

Black

NW(mm)

12

Product code

PA6HBLS212

θ int(mm)

16.8

θ est(mm)

21.2

Color

Black

NW(mm)

17

Product code

PA6HBLS217

θ int(mm)

23.4

θ est(mm)

28.5

Color

Black

NW(mm)

23

Product code

PA6HBLS223

θ int(mm)

29.2

θ est(mm)

34.5

Color

Black

NW(mm)

29

Product code

PA6HBLS229

θ int(mm)

36.7

θ est(mm)

42.5

Color

Black

NW(mm)

36

Product code

PA6HBLS236

θ int(mm)

47.8

θ est(mm)

54.5

Color

Black

NW(mm)

48

Product code

PA6HBLS248

Characteristics

Operating temperature: – 40 °C / + 120 °C
Temperature (Short period) IS FIP: 130°C (500h)
Degree of protection IP: IP44
Material: Polyamide 6 (PA6)
Color: Black
Reference standard: EN IEC 61386-23
Classification codes EN IEC 61386: 2 2 4 4
Compressive strength: 320 N
Impact resistance: 1 J
Halogen-Cadmium Free: Yes
Fire classification UL94: HB
Self-extinguishing FMVSS 302: Self-extinguishing
Spread of fire EN IEC 61386: non flame propagating

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
