Nylon and pvc conduits

Divisible corrugated conduit type 2 PA6V2 SM

Double divisible corrugated conduit IP44. The double divisible corrugated conduit 2-PA6V2-SM is manufactured in specially modified polyamide 6 PA6 MOD BS [V2(V0)] in compliance with the norms EN IEC 61386-2-3. These products are the perfect solution for retrofit application grade cable protection. The re-closable double shell conduit properly overlaps and provides enhanced cable protection capabilities against external influences and impacts. Pre-assembled cable harnesses with already installed connectors can be accomplished easily and safe. This divisible conduit made of high grade polyamide 6 perfectly suits various industrial application needs. Self-extinguishing and non flame propagating in compliance with UL 1696, FMVSS 302 and EN IEC 61386, certificate equivalent standard : Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

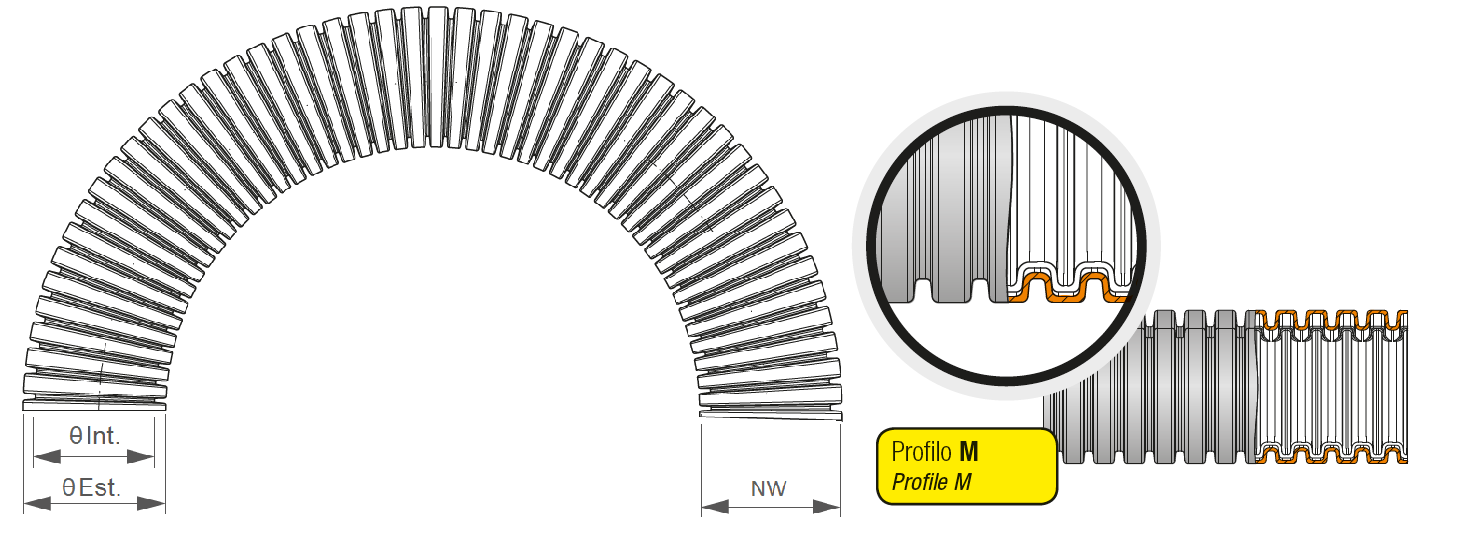

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 6 MOD BS(PA6 MOD BS)
Color: Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

6.3

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

2-PA6V2-SM-07B

θ int(mm)

87.5

θ est(mm)

102.5

Color

Black

NW(mm)

100

Product code

2-PA6V2-SM-100B

θ int(mm)

8.8

θ est(mm)

13.5

Color

Black

NW(mm)

10

Product code

2-PA6V2-SM-10B

θ int(mm)

11

θ est(mm)

16.1

Color

Black

NW(mm)

11

Product code

2-PA6V2-SM-11B

θ int(mm)

13.2

θ est(mm)

18.7

Color

Black

NW(mm)

14

Product code

2-PA6V2-SM-14B

θ int(mm)

16

θ est(mm)

21.5

Color

Black

NW(mm)

16

Product code

2-PA6V2-SM-16B

θ int(mm)

20.2

θ est(mm)

25.7

Color

Black

NW(mm)

20

Product code

2-PA6V2-SM-20B

θ int(mm)

23.9

θ est(mm)

31.3

Color

Black

NW(mm)

23

Product code

2-PA6V2-SM-23B

θ int(mm)

27.3

θ est(mm)

35.5

Color

Black

NW(mm)

29

Product code

2-PA6V2-SM-29B

θ int(mm)

32.5

θ est(mm)

43.2

Color

Black

NW(mm)

37

Product code

2-PA6V2-SM-37B

θ int(mm)

43.1

θ est(mm)

54.2

Color

Black

NW(mm)

45

Product code

2-PA6V2-SM-45B

θ int(mm)

67

θ est(mm)

79.8

Color

Black

NW(mm)

70

Product code

2-PA6V2-SM-70B

Characteristics

Operating temperature: – 45 °C / + 120 °C
Degree of protection IP: IP44
Material: Polyamide 6 MOD BS(PA6 MOD BS)
Color: Black
Reference standard: EN IEC 61386-23
Classification codes EN IEC 61386: 2 2 5 4
Compressive strength: 320 N
Impact resistance: 1 J
Halogen-Cadmium Free: Yes
Fire characteristic of the product UL 1696: Self-extinguishing
Fire classification UL94: V2 (V0)
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 850 °C
Fire hazardous level EN 45545-2: HL2 R22/R23
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kv/mq): 25,84 MJ/Kg (11123.3 BTU/lb)
Vertical burning behavior (EN ISO 6941:2003): Self-extinguishing
UV and weathering performance IS FIP: Average to good (5-10 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

American Society for Testing and Materials

Halogen free

National Fire Protection Association

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for fire behavior of vechile interiors according to UNECE 118

Standards for rolling stock (halogen free) EN 45545-2
