Nylon and pvc conduits

Divisible corrugated conduit type 2 PA6V0 FM

Double divisible corrugated conduit IP44. The double divisible corrugated conduit 2-PA6V2-SM is manufactured in specially modified polyamide 6 PA6 MOD V0 [V0] in compliance with the norms EN IEC 61386-2-3. These products are the perfect solution for retrofit application grade cable protection. The re-closable double shell conduit properly overlaps and provides enhanced cable protection capabilities against external influences and impacts. Pre-assembled cable harnesses with already installed connectors can be accomplished easily and safe. This divisible conduit made of high grade polyamide 6 perfectly suits various industrial application needs. Self-extinguishing and non flame propagating in compliance with UL 1696, FMVSS 302 and EN IEC 61386, certificate equivalent standard : Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

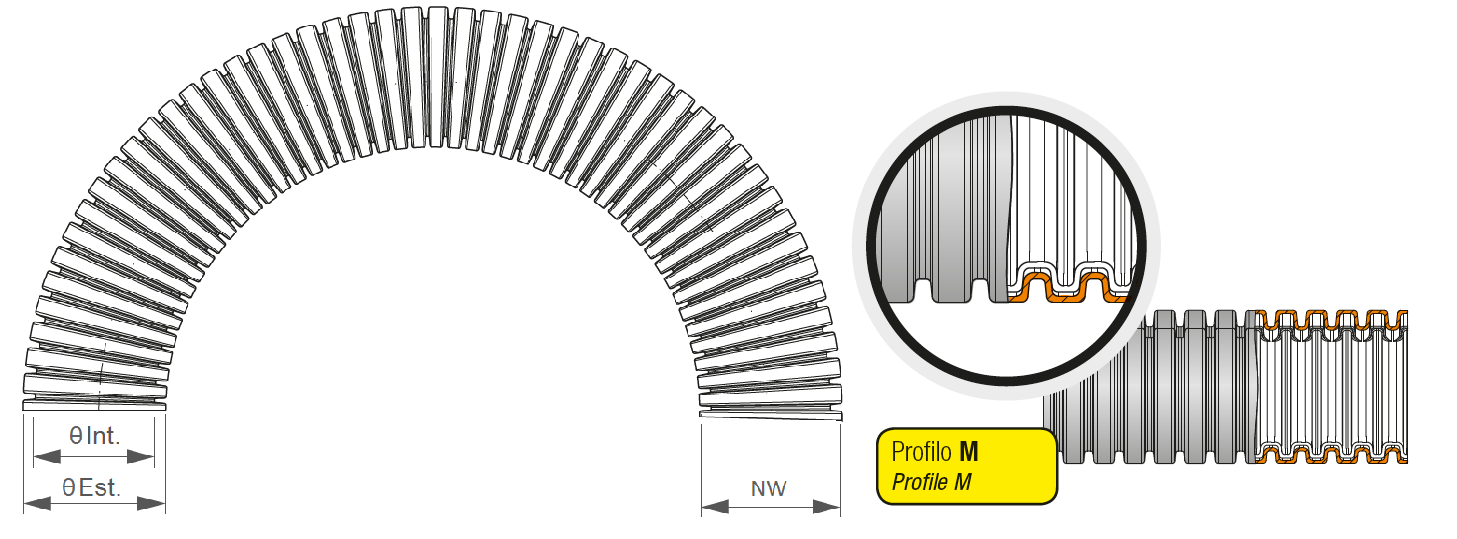

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 6 MOD V0(PA6 MOD V0)
Color: Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

6.3

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

2-PA6V0-FM-07B

θ int(mm)

8.8

θ est(mm)

13.5

Color

Black

NW(mm)

10

Product code

2-PA6V0-FM-10B

θ int(mm)

11

θ est(mm)

16.1

Color

Black

NW(mm)

11

Product code

2-PA6V0-FM-11B

θ int(mm)

13.2

θ est(mm)

18.7

Color

Black

NW(mm)

14

Product code

2-PA6V0-FM-14B

θ int(mm)

16

θ est(mm)

21.5

Color

Black

NW(mm)

16

Product code

2-PA6V0-FM-16B

θ int(mm)

20.2

θ est(mm)

25.7

Color

Black

NW(mm)

20

Product code

2-PA6V0-FM-20B

θ int(mm)

23.9

θ est(mm)

31.3

Color

Black

NW(mm)

23

Product code

2-PA6V0-FM-23B

θ int(mm)

27.3

θ est(mm)

35.5

Color

Black

NW(mm)

29

Product code

2-PA6V0-FM-29B

θ int(mm)

32.5

θ est(mm)

43.2

Color

Black

NW(mm)

37

Product code

2-PA6V0-FM-37B

θ int(mm)

43.1

θ est(mm)

54.2

Color

Black

NW(mm)

45

Product code

2-PA6V0-FM-45B

Characteristics

Operating temperature: – 45 °C / + 120 °C
Degree of protection IP: IP44
Material: Polyamide 6 MOD V0(PA6 MOD V0)
Color: Black
Reference standard: EN IEC 61386-23
Classification codes EN IEC 61386: 2 2 5 4
Compressive strength: 320 N
Impact resistance: 1 J
Halogen-Cadmium Free: Yes
Fire characteristic of the product UL 1696: Self-extinguishing
Fire classification UL94: V0
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >35%
Glow wire test IEC 60695: 850 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Spread of fire (EN IEC 61386): Self-extinguishing
Vertical burning behavior (EN ISO 6941:2003): Self-extinguishing
UV and weathering performance IS FIP: Average to good (5-10 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

American Society for Testing and Materials

Halogen free

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for fire behavior of vechile interiors according to UNECE 118

Standards for rolling stock (halogen free) EN 45545-2
