Metal junction boxes

Derivation box or junction box type EU

Derivation junction box with mounting holes IP65. Enclosures made of die-cast aluminium alloy and them sandblasted or varnished with grey RAL 7035. They have smooth walls, with thickness more than 3 mm which therefore can be threaded. On their bottom is possible to fix sections type DIN 46277 or terminal boards. They have one or more grounding screws inside. It’s possible to fix the boxes through holes external to gasket perimeter. Inspection cover’s screws are made of Stainless Steel. Provided with neoprene gasket. The enclosure can be fixed by means of holes. IP65 protection degree (obtained with complete enclosures), temperature of use -20°C +100°C.

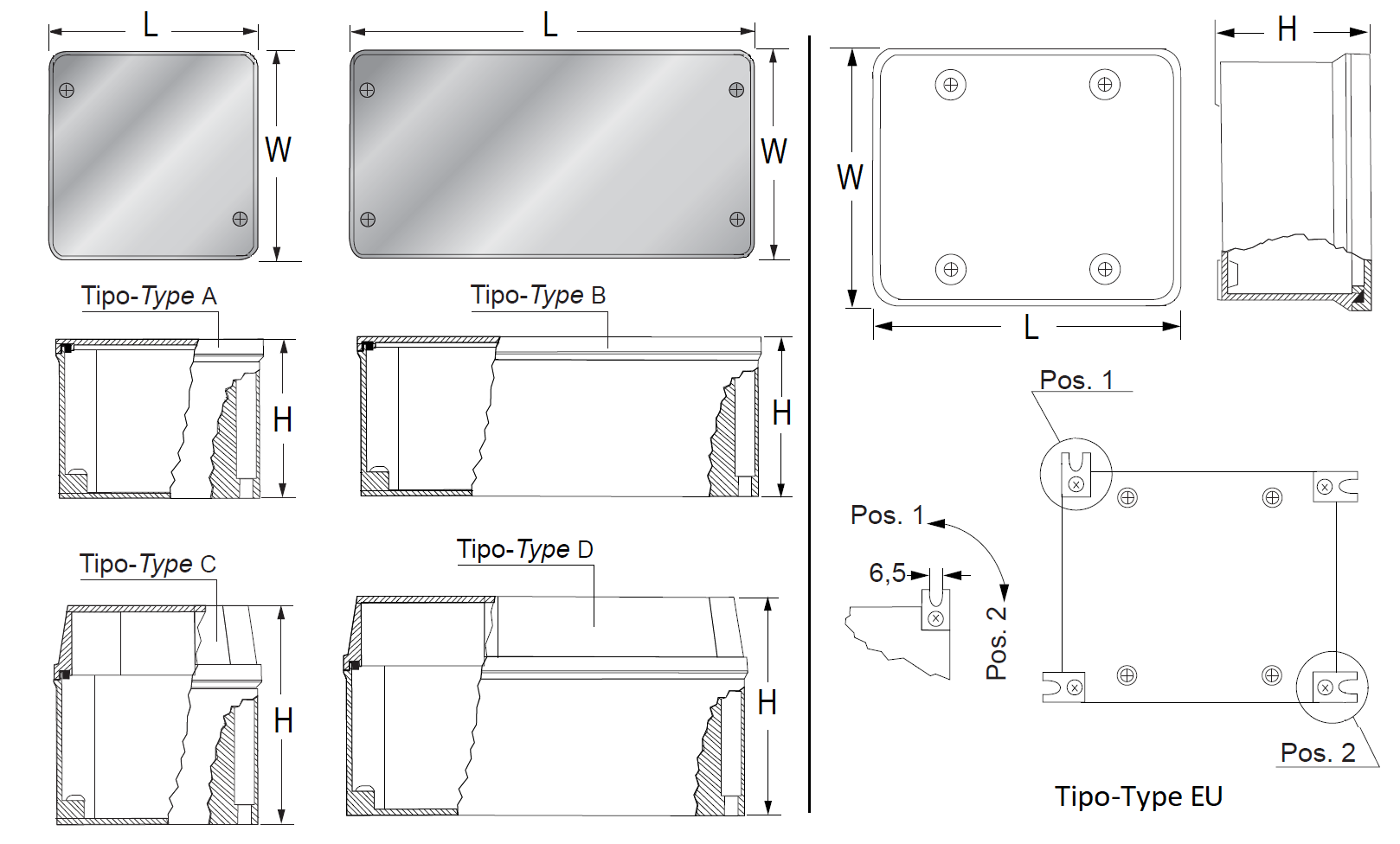

Tipi di cassetti – EU, A, B, C, D
L – Length of the Derivation box or junction box
W – Width of the Derivation box or junction box
H – Height of the Derivation box or junction box
Material: Aluminum alloy / Stainless Steel AISI 304
Color: Grey / Steel

Material

Material

L(mm)

L(mm)

Typology

Typology

H(mm)

H(mm)

W(mm)

W(mm)

Product code

Material

Aluminum

L(mm)

66

Typology

A

H(mm)

44

W(mm)

66

Product code

EU06038

Material

AISI 304 Stainless Steel

L(mm)

66

Typology

A

H(mm)

44

W(mm)

66

Product code

EU06038X

Material

Aluminum

L(mm)

70

Typology

EU

H(mm)

45

W(mm)

70

Product code

EU070

Material

Aluminum

L(mm)

76

Typology

A

H(mm)

40

W(mm)

76

Product code

EU07034

Material

AISI 304 Stainless Steel

L(mm)

76

Typology

A

H(mm)

40

W(mm)

76

Product code

EU07034X

Material

Aluminum

L(mm)

76

Typology

A

H(mm)

54

W(mm)

76

Product code

EU07048

Material

AISI 304 Stainless Steel

L(mm)

76

Typology

A

H(mm)

54

W(mm)

76

Product code

EU07048X

Material

Aluminum

L(mm)

91

Typology

A

H(mm)

61

W(mm)

91

Product code

EU08554

Material

AISI 304 Stainless Steel

L(mm)

91

Typology

A

H(mm)

61

W(mm)

91

Product code

EU08554X

Material

Aluminum

L(mm)

100

Typology

EU

H(mm)

55

W(mm)

55

Product code

EU100

Material

Aluminum

L(mm)

100

Typology

EU

H(mm)

55

W(mm)

55

Product code

EU100

Material

Aluminum

L(mm)

106

Typology

A

H(mm)

61

W(mm)

106

Product code

EU10054

Material

AISI 304 Stainless Steel

L(mm)

106

Typology

A

H(mm)

61

W(mm)

106

Product code

EU10054X

Material

Aluminum

L(mm)

106

Typology

A

H(mm)

81

W(mm)

106

Product code

EU10074

Material

AISI 304 Stainless Steel

L(mm)

106

Typology

A

H(mm)

81

W(mm)

106

Product code

EU10074X

Material

Aluminum

L(mm)

106

Typology

EU

H(mm)

71

W(mm)

106

Product code

EU102

Material

Aluminum

L(mm)

109

Typology

A

H(mm)

41

W(mm)

59

Product code

EU10534

Material

AISI 304 Stainless Steel

L(mm)

109

Typology

A

H(mm)

41

W(mm)

59

Product code

EU10534X

Material

Aluminum

L(mm)

109

Typology

A

H(mm)

55

W(mm)

59

Product code

EU10548

Material

AISI 304 Stainless Steel

L(mm)

109

Typology

A

H(mm)

55

W(mm)

59

Product code

EU10548X

Material

Aluminum

L(mm)

126

Typology

A

H(mm)

41

W(mm)

78.5

Product code

EU12034

Material

AISI 304 Stainless Steel

L(mm)

126

Typology

A

H(mm)

41

W(mm)

78.5

Product code

EU12034X

Material

Aluminum

L(mm)

126

Typology

A

H(mm)

61

W(mm)

78.5

Product code

EU12054

Material

AISI 304 Stainless Steel

L(mm)

126

Typology

A

H(mm)

61

W(mm)

78.5

Product code

EU12054X

Material

Aluminum

L(mm)

126

Typology

A

H(mm)

75

W(mm)

78.5

Product code

EU12068

Material

AISI 304 Stainless Steel

L(mm)

126

Typology

A

H(mm)

75

W(mm)

78.5

Product code

EU12068X

Material

Aluminum

L(mm)

133

Typology

A

H(mm)

75

W(mm)

133

Product code

EU13068

Material

AISI 304 Stainless Steel

L(mm)

133

Typology

A

H(mm)

75

W(mm)

133

Product code

EU13068X

Material

Aluminum

L(mm)

133

Typology

A

H(mm)

91

W(mm)

133

Product code

EU13084

Material

AISI 304 Stainless Steel

L(mm)

133

Typology

A

H(mm)

91

W(mm)

133

Product code

EU13084X

Material

Aluminum

L(mm)

142

Typology

EU

H(mm)

71

W(mm)

117

Product code

EU135

Material

Aluminum

L(mm)

156

Typology

A

H(mm)

61

W(mm)

106

Product code

EU15054

Material

AISI 304 Stainless Steel

L(mm)

156

Typology

A

H(mm)

61

W(mm)

106

Product code

EU15054X

Material

Aluminum

L(mm)

156

Typology

A

H(mm)

81

W(mm)

106

Product code

EU15074

Material

AISI 304 Stainless Steel

L(mm)

156

Typology

A

H(mm)

81

W(mm)

106

Product code

EU15074X

Material

Aluminum

L(mm)

167

Typology

EU

H(mm)

81

W(mm)

142

Product code

EU160

Material

Aluminum

L(mm)

192

Typology

EU

H(mm)

96

W(mm)

167

Product code

EU185

Material

Aluminum

L(mm)

206

Typology

D

H(mm)

114

W(mm)

106

Product code

EU200114

Material

AISI 304 Stainless Steel

L(mm)

206

Typology

D

H(mm)

114

W(mm)

106

Product code

EU200114X

Material

Aluminum

L(mm)

206

Typology

B

H(mm)

61

W(mm)

106

Product code

EU20054

Material

AISI 304 Stainless Steel

L(mm)

206

Typology

B

H(mm)

61

W(mm)

106

Product code

EU20054X

Material

Aluminum

L(mm)

206

Typology

B

H(mm)

81

W(mm)

106

Product code

EU20074

Material

AISI 304 Stainless Steel

L(mm)

206

Typology

B

H(mm)

81

W(mm)

106

Product code

EU20074X

Material

Aluminum

L(mm)

206

Typology

D

H(mm)

94

W(mm)

106

Product code

EU20094

Material

AISI 304 Stainless Steel

L(mm)

206

Typology

D

H(mm)

94

W(mm)

106

Product code

EU20094X

Material

Aluminum

L(mm)

254

Typology

EU

H(mm)

101

W(mm)

219

Product code

EU245

Material

Aluminum

L(mm)

256

Typology

A

H(mm)

61

W(mm)

91

Product code

EU25054

Material

AISI 304 Stainless Steel

L(mm)

256

Typology

A

H(mm)

61

W(mm)

91

Product code

EU25054X

Material

Aluminum

L(mm)

256

Typology

A

H(mm)

75

W(mm)

91

Product code

EU25068

Material

AISI 304 Stainless Steel

L(mm)

256

Typology

A

H(mm)

75

W(mm)

91

Product code

EU25068X

Material

Aluminum

L(mm)

268

Typology

B

H(mm)

75

W(mm)

133

Product code

EU26068

Material

AISI 304 Stainless Steel

L(mm)

268

Typology

B

H(mm)

75

W(mm)

133

Product code

EU26068X

Material

Aluminum

L(mm)

268

Typology

B

H(mm)

91

W(mm)

133

Product code

EU26084

Material

AISI 304 Stainless Steel

L(mm)

268

Typology

B

H(mm)

91

W(mm)

133

Product code

EU26084X

Material

Aluminum

L(mm)

302

Typology

EU

H(mm)

130

W(mm)

262

Product code

EU295

Characteristics

Operating temperature: – 20 °C / + 100 °C
Degree of protection IP: IP65
Material: Aluminum alloy / Stainless Steel AISI 304
Color: Grey / Acciaio
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
