Nylhom junction boxes
Derivation box or junction box NYLOHM
Derivation junction box manufactured in polyamide (PA66) compliance with the norms EN IEC 61386-23. Dividers manufactured in polyamide (PA66) in compliance with the norms EN IEC 61386-2-3 and self-exstinguishing according to the norms UL94. Anti-vibration and non openable accidentally, they ensure an IP68 protection degree. They can support a wide set of offshoot together with different types of swivel fittings, swivel straight fittings, swivel 90° fittings and swivel 45° fittings. REGISTERED INVENTION PATENT N°102016000132538, they ensure electrical continuity with metal fittings or cable glandsand a temperature range between -50°C and +120°C. Electrical continuity detected < 0,05 ohm/mt. The NylOn enclosure can be used together with our metal and nylon fittings. Installation kit including 2 metric plugs, 4 gaskets and 1 friction lid with o-ring.

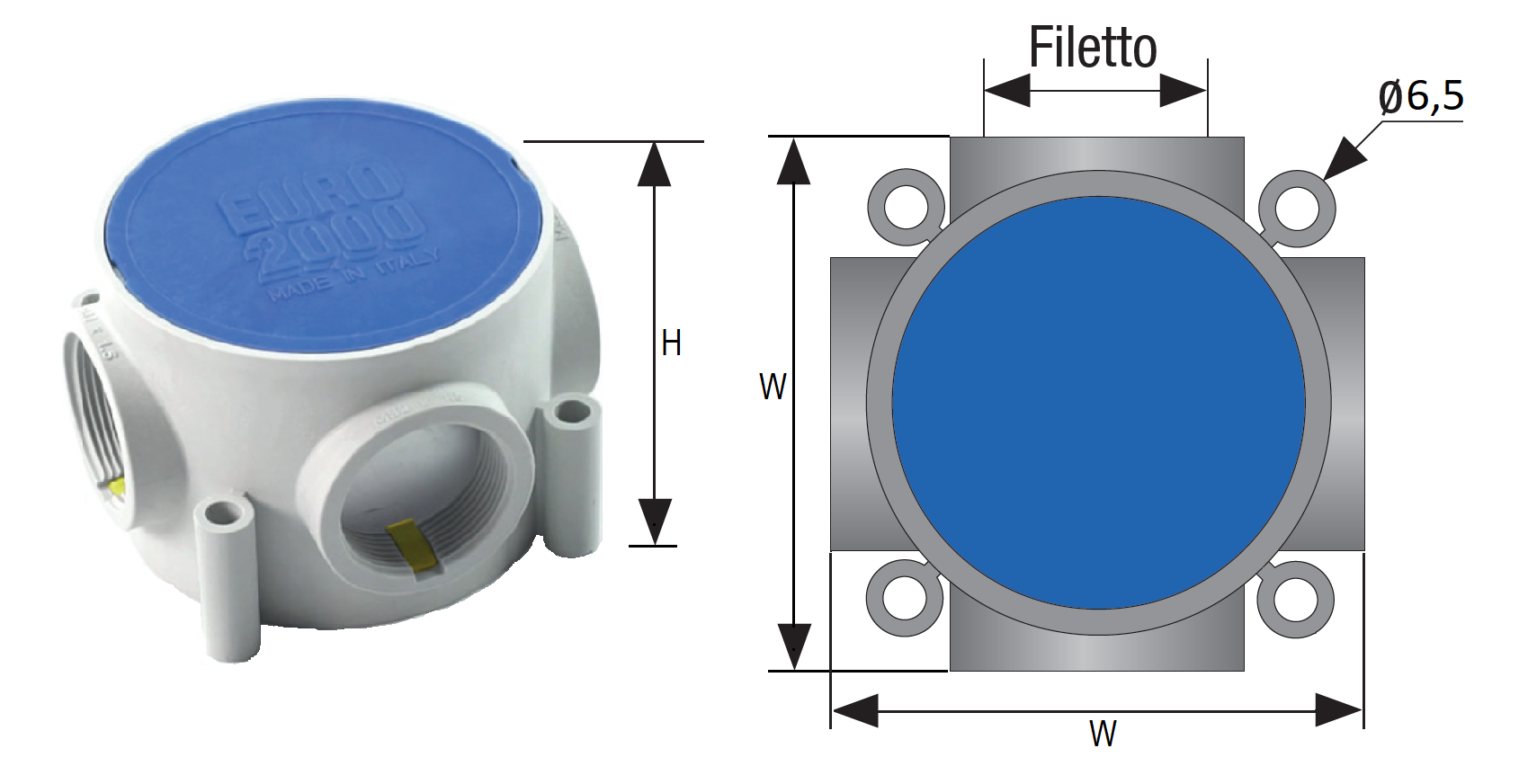

L – Length of the Derivation box or junction box
W – Width of the Derivation box or junction box
H – Height of the Derivation box or junction box
Material: Polyamide (PA66)
Color: Grey/ Black
Color
Grey
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
L(mm)
73.5
H(mm)
52.5
W(mm)
73.5
Product code
NY02
Color
Grey
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
L(mm)
89.5
H(mm)
60
W(mm)
89.5
Product code
NY03
Color
Grey
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
L(mm)
105
H(mm)
67.5
W(mm)
105
Product code
NY04
Color
Grey
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
L(mm)
116.5
H(mm)
78
W(mm)
116.5
Product code
NY05
Application sectors
Characteristics
Operating temperature: – 50 °C / + 120 °C
Degree of protection IP: IP66/IP67/IP68
Material: Poliammide (PA66)
Color: Grey/ Black
Reference standard: EN IEC 61386
Fire classification UL94: V0
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
UV (ISO 4892-2:2013): Compliant
Certifications
Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066
Registration, Evaluation, Authorization and Restriction of Chemicals
Restriction of Hazardous Substances directive
Standard for safety of flammability of plastic materials
