Metal junction boxes

Derivation box or junction box in INOX 304 and 316 EUX

Derivation junction box with mounting holes IP65. Enclosures made of STAINLESS STEEL AISI 304 or 316L. They have smooth walls, with thickness more than 3 mm which therefore can be threaded. On their bottom is possible to fix sections type DIN 46277 or terminal boards. They have one or more grounding screws inside. It’s possible to fix the boxes through holes external to gasket perimeter. Inspection cover’s screws are made of Stainless Steel. Provided with neoprene gasket. The enclosure can be fixed by means of holes. IP65 protection degree (obtained with complete enclosures), temperature of use -20°C +100°C.

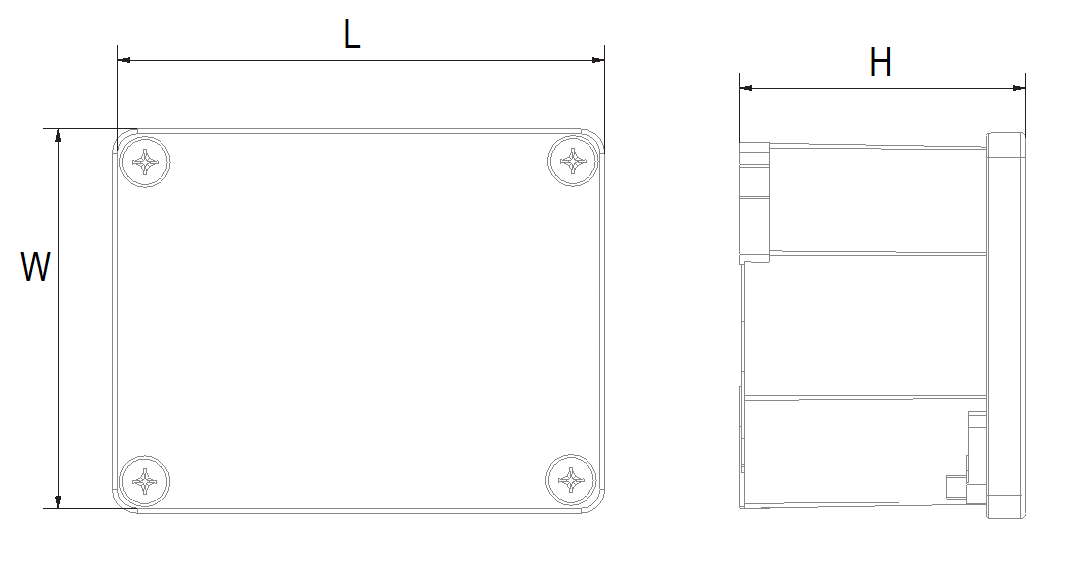

L – Length of the Derivation box or junction box
W – Width of the Derivation box or junction box
H – Height of the Derivation box or junction box
Material: Stainless Steel AISI 304
Color: Steel
Possibility of production with MOQ, in AISI 316L stainless steel material (A4)

Material

Material

L(mm)

L(mm)

H(mm)

H(mm)

W(mm)

W(mm)

Product code

Material

AISI 304 Stainless Steel

L(mm)

90

H(mm)

90

W(mm)

90

Product code

EUX090909

Material

AISI 304 Stainless Steel

L(mm)

150

H(mm)

90

W(mm)

90

Product code

EUX091509

Material

AISI 304 Stainless Steel

L(mm)

200

H(mm)

90

W(mm)

90

Product code

EUX092009

Material

AISI 304 Stainless Steel

L(mm)

300

H(mm)

90

W(mm)

90

Product code

EUX093009

Material

AISI 304 Stainless Steel

L(mm)

150

H(mm)

120

W(mm)

150

Product code

EUX151512

Material

AISI 304 Stainless Steel

L(mm)

200

H(mm)

120

W(mm)

150

Product code

EUX152012

Material

AISI 304 Stainless Steel

L(mm)

300

H(mm)

120

W(mm)

150

Product code

EUX153012

Material

AISI 304 Stainless Steel

L(mm)

200

H(mm)

120

W(mm)

200

Product code

EUX202012

Material

AISI 304 Stainless Steel

L(mm)

300

H(mm)

120

W(mm)

200

Product code

EUX203012

Material

AISI 304 Stainless Steel

L(mm)

400

H(mm)

120

W(mm)

200

Product code

EUX204012

Material

AISI 304 Stainless Steel

L(mm)

300

H(mm)

120

W(mm)

300

Product code

EUX303012

Material

AISI 304 Stainless Steel

L(mm)

400

H(mm)

150

W(mm)

300

Product code

EUX304015

Material

AISI 304 Stainless Steel

L(mm)

400

H(mm)

150

W(mm)

400

Product code

EUX404015

Characteristics

Operating temperature: – 40 °C / + 80 °C
Degree of protection IP: IP 66 IK 08
Material: Acciaio inox AISI304
Color: Steel
Reference standard: EN 62208 / 2012 20016/12/CE
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
