Fittings for Conduits
Corrugated conduit fitting type swivel male and female thread with metal thread
Fittings with metal thread available in ISO metric and PG version. Manufactured in compliance with EN IEC 61386-2-3 in Polyamide 6 (PA66) and self-exstinguishing according to UL94. They are anti-vibration and not accidentally openable with an IP68 protection degree. It is recommended to use a screwdriver for disassembling.Temperature range: -50°C/+135°C

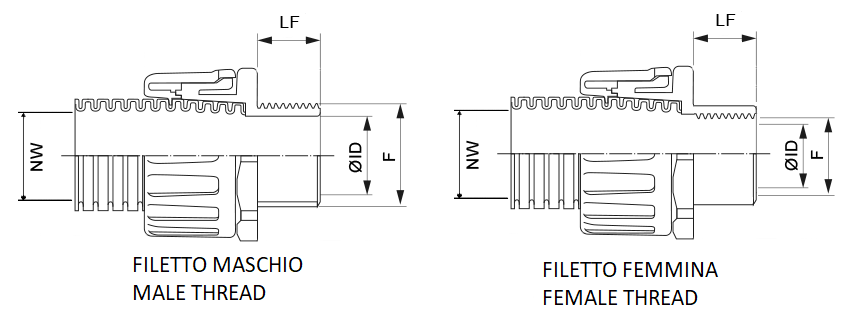

NW – Nominal diameter of the conduit
F – Thread Type and Thread Size
Lf – Thread length
Material: Polyamide 66 (PA66)
Color: Black
NW(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG09
Typology
Male (External) thread
Product code
P74509E
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG11
Typology
Male (External) thread
Product code
P74511E
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG13,5
Typology
Male (External) thread
Product code
P74513E
NW(mm)
17
Thread(F)
PG (DIN 40430)
Size(F)
PG16
Typology
Male (External) thread
Product code
P74516E
NW(mm)
23
Thread(F)
PG (DIN 40430)
Size(F)
PG21
Typology
Male (External) thread
Product code
P74521E
NW(mm)
29
Thread(F)
PG (DIN 40430)
Size(F)
PG29
Typology
Male (External) thread
Product code
P74529E
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG09
Typology
Male (External) thread
Product code
P74609E
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Typology
Male (External) thread
Product code
P78513
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Typology
Male (External) thread
Product code
P78516
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Typology
Male (External) thread
Product code
P78521
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Typology
Male (External) thread
Product code
P78529
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Typology
Male (External) thread
Product code
P78536
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Typology
Male (External) thread
Product code
P78548
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Typology
Male (External) thread
Product code
P78613
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Typology
Male (External) thread
Product code
P78616
NW(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG09
Typology
Female (Internal) thread
Product code
P79509
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG11
Typology
Female (Internal) thread
Product code
P79511
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG16
Typology
Female (Internal) thread
Product code
P79516
NW(mm)
23
Thread(F)
PG (DIN 40430)
Size(F)
PG21
Typology
Female (Internal) thread
Product code
P79521
NW(mm)
29
Thread(F)
PG (DIN 40430)
Size(F)
PG29
Typology
Female (Internal) thread
Product code
P79529
NW(mm)
17
Thread(F)
PG (DIN 40430)
Size(F)
PG16
Typology
Female (Internal) thread
Product code
P79616
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Typology
Female (Internal) thread
Product code
P79713
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Typology
Female (Internal) thread
Product code
P79716
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Typology
Female (Internal) thread
Product code
P79721
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Typology
Female (Internal) thread
Product code
P79729
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Typology
Female (Internal) thread
Product code
P79736
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Typology
Female (Internal) thread
Product code
P79748
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Typology
Female (Internal) thread
Product code
P79813
Application sectors
Characteristics
Operating temperature: – 50 °C / + 135 °C
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 66 (PA66)
Color: Black
Reference standard: EN IEC 61386
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing EN IEC 61386: Flame retardant
UV : Excellent
Quality controls
Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.
Certifications
Halogen free
International Railway Industry Standard (ISO TS 22163) - 238323138
Limiting Oxygen Index of greater than 32%, low smoke and low toxicity
Registration, Evaluation, Authorization and Restriction of Chemicals
Resistenza alle radiazioni UV
Restriction of Hazardous Substances directive
Transport for London – TFL
