Fittings for Conduits

Corrugated conduit fitting type PA RSM

Straight fitting with metal male thread corrugated flexible conduit IP66/IP67/IP68/IP69. Our one-piece straight fitting from specially modified, halogen-free Polyamide 6 and nickel-plated brass threads is self-extinguishing and resistant to the most commonly used chemical media. Due to its excellent UV resistance, this fitting can also be installed outdoors. With our newly developed 360 ° locking system and an inner tube seal, it meets the highest protection class IP69 in conjunction with our FIPLOCK corrugated tubes in fine and coarse profiles. Its clip is easy to close and re-open by means of a screwdriver and this peculiarity implies significant time savings during the installation process. It is available in two threads version: PG, ISO (with two thread lengths: long and short) and in two colors: black and grey.

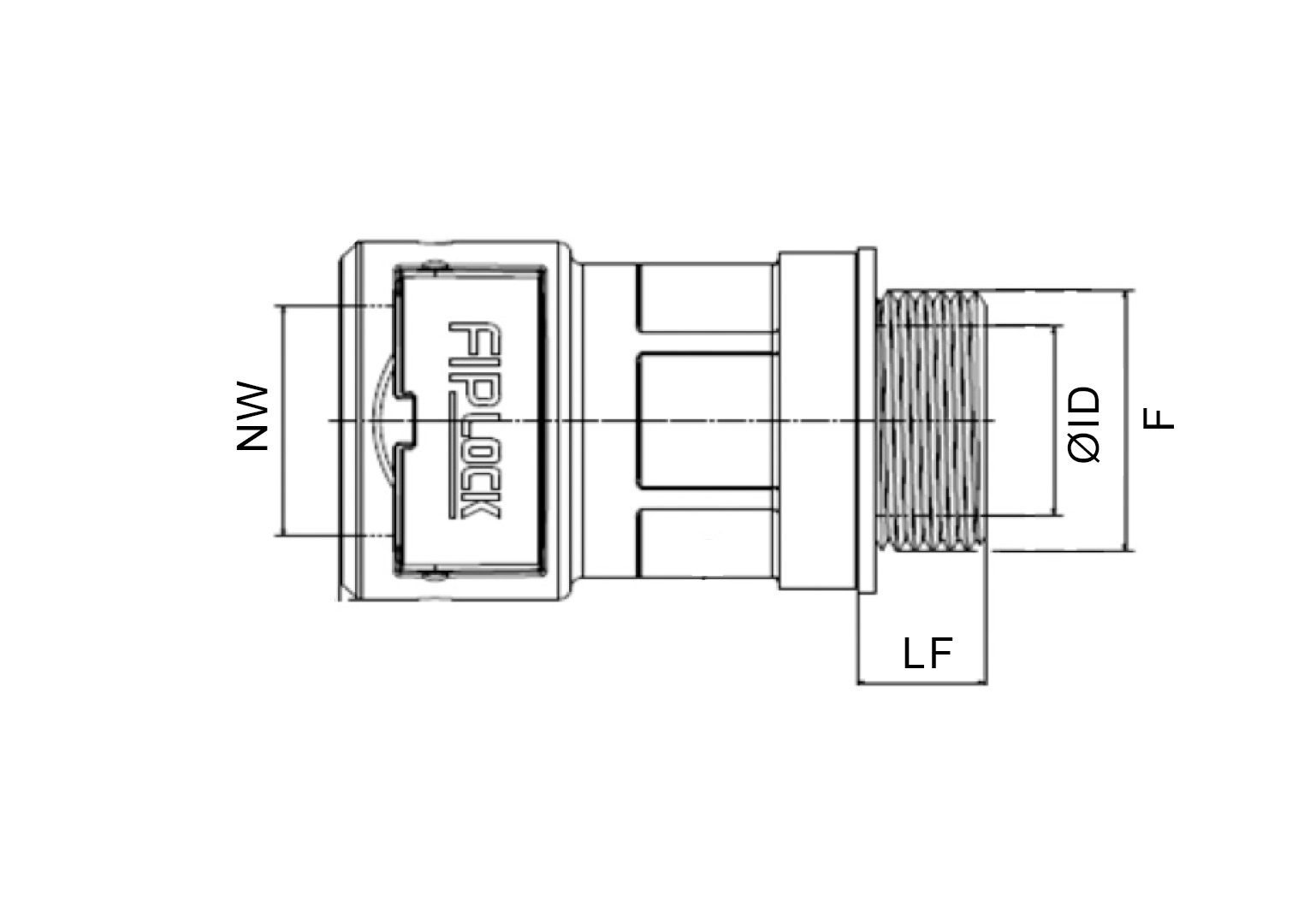

NW – Nominal diameter of the conduit
θ ID – Maximum cable passage
F – Thread Type and Thread Size
Lf – Thread length
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey

NW(mm)

NW(mm)

Select Thread(F)

Lf(mm)

Lf(mm)

Product code

NW(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Lf(mm)

12

Product code

P74509

NW(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

12

Product code

P74511

NW(mm)

17

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

13

Product code

P74516

NW(mm)

23

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Lf(mm)

14

Product code

P74521

NW(mm)

29

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

14

Product code

P74529

NW(mm)

36

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

17

Product code

P74536

NW(mm)

48

Thread(F)

PG (DIN 40430)

Size(F)

PG48

Lf(mm)

17

Product code

P74548

NW(mm)

17

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

13

Product code

P74613

NW(mm)

23

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

14

Product code

P74629

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M12x1,5

Lf(mm)

10

Product code

P78512A

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M12x1,5

Lf(mm)

5

Product code

P78512B

NW(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

10

Product code

P78520A

NW(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

6

Product code

P78520B

NW(mm)

17

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

11

Product code

P78525A

NW(mm)

17

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

7

Product code

P78525B

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

13

Product code

P78532A

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

8

Product code

P78532B

NW(mm)

29

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

13

Product code

P78540A

NW(mm)

29

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

8

Product code

P78540B

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

14

Product code

P78550A

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

9

Product code

P78550B

NW(mm)

48

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Lf(mm)

14

Product code

P78563A

NW(mm)

48

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Lf(mm)

10

Product code

P78563B

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

10

Product code

P78616A

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

5

Product code

P78616B

NW(mm)

17

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

10

Product code

P78620A

NW(mm)

17

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

6

Product code

P78620B

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

11

Product code

P78625A

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

7

Product code

P78625B

NW(mm)

29

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

13

Product code

P78632A

NW(mm)

29

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

8

Product code

P78632B

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

13

Product code

P78640A

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

8

Product code

P78640B

NW(mm)

48

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

14

Product code

P78650A

NW(mm)

48

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

9

Product code

P78650B

NW(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

10

Product code

P78716A

NW(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

5

Product code

P78716B

Characteristics

Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386, UL1696
Tensile strength: 500 N
Notched bar impact test ISO 180: 7-25 KJ/m2
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Excellent (40 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

American Society for Testing and Materials

Halogen free

National Fire Protection Association

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for rolling stock (halogen free) EN 45545-2
