Fittings for Conduits

Corrugated conduit fitting type PA RGM 90

90° Straight fitting swivel male metal thread for corrugated conduit IP66/IP67/IP68/IP69. The one-piece PA RGM 90° cable protection fitting is made of specially modified, halogen-free polyamide 6. It is self-extinguishing and resistant against most chemical media commonly used. The revolving metal thread fitting with a metric long thread, made of brass nickel plated, offers easy screw-in installation of pre-assembled cable harnesses. Occasional rotation of the fitting is possible but not a frequent rotation. Due to its excellent UV resistance, PA RGM 90° is also perfectly suitable for outdoor installations. With the brand new 360° interlocking system and an inside conduit seal, PA RGM 90° complies with the highest possible protection class IP69 in combination with our corrugated conduits. Being delivered pre-assembled, ready to use, and easy to re-open by using a commercially available slotted screwdriver, PA RGM 90° ensures significant time saving during installation and disassembly.

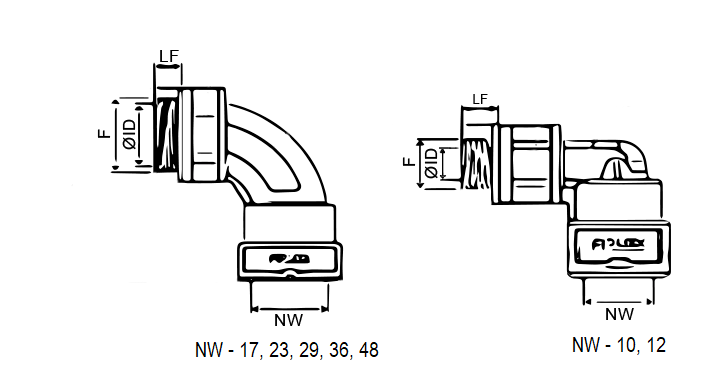

NW – Nominal diameter of the conduit
θ ID – Maximum cable passage
F – Thread Type and Thread Size
Lf – Thread length
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey

NW(mm)

NW(mm)

Select Thread(F)

Lf(mm)

Lf(mm)

Product code

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M12x1,5

Lf(mm)

10

Product code

P341012

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

10

Product code

P341016

NW(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

10

Product code

P341216

NW(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

10

Product code

P341220

NW(mm)

17

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

10

Product code

P341720

NW(mm)

17

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

11

Product code

P341725

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

11

Product code

P342325

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

13

Product code

P342332

NW(mm)

29

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

13

Product code

P342932

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

13

Product code

P342940

NW(mm)

29

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

13

Product code

P343632

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

13

Product code

P343640

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

14

Product code

P343650

NW(mm)

48

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

14

Product code

P344850

NW(mm)

48

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Lf(mm)

14

Product code

P344863

NW(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Lf(mm)

12

Product code

P521009

NW(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Lf(mm)

12

Product code

P521209

NW(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

12

Product code

P521211

NW(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG13

Lf(mm)

13

Product code

P521213

NW(mm)

17

Thread(F)

PG (DIN 40430)

Size(F)

PG13

Lf(mm)

13

Product code

P521713

NW(mm)

17

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

13

Product code

P521716

NW(mm)

23

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

13

Product code

P522316

NW(mm)

23

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Lf(mm)

14

Product code

P522321

NW(mm)

29

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

14

Product code

P522929

NW(mm)

36

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

14

Product code

P523629

NW(mm)

36

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

17

Product code

P523636

NW(mm)

48

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

17

Product code

P524836

NW(mm)

48

Thread(F)

PG (DIN 40430)

Size(F)

PG48

Lf(mm)

17

Product code

P524848

Characteristics

Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386
Tensile strength: 500 N
Notched bar impact test ISO 180: 7-25 KJ/m2
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Excellent (40 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

American Society for Testing and Materials

Halogen free

National Fire Protection Association

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for rolling stock (halogen free) EN 45545-2
