Fittings for Conduits

Corrugated conduit fitting type 90° with male thread

90° straight male fittings available in version PG ans ISO metric. Manufactured according to EN IEC 61386-2-3 in Poliamyde (PA66) self-estinguished according to UL94. The chemical structure of this product makes this material not flammable. During combustion it doesn’t develop halogen substances, reducing at minimum level smoke density and toxicity. Furthermore, it isn’t subject to remarkable deteriorations due to UV rays. Antivibrant and not accidentally openable, they ensure a protection degree IP66. To disassemble them from the conduit it is necessary to use a little screwdriver. Temperature range: -50°C/+135°C.

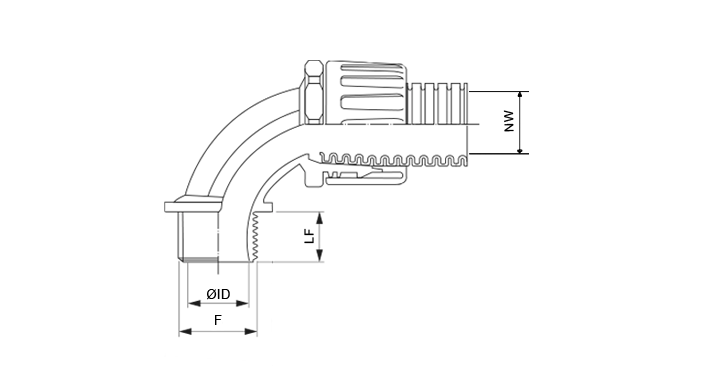

NW – Nominal diameter of the conduit
F – Thread Type and Thread Size
Lf – Thread length
Material: Polyamide 66 (PA66)
Color: Black

Color

Color

NW(mm)

NW(mm)

Select Thread(F)

Product code

Color

Black

NW(mm)

7

Thread(F)

PG (DIN 40430)

Size(F)

PG07

Product code

P92007

Color

Black

NW(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG09

Product code

P92009

Color

Black

NW(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Product code

P92011

Color

Black

NW(mm)

17

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Product code

P92013

Color

Black

NW(mm)

17

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Product code

P92016

Color

Black

NW(mm)

23

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Product code

P92021

Color

Black

NW(mm)

29

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Product code

P92029

Color

Black

NW(mm)

36

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Product code

P92036

Color

Black

NW(mm)

48

Thread(F)

PG (DIN 40430)

Size(F)

PG48

Product code

P92048

Color

Black

NW(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Product code

P92113

Color

Black

NW(mm)

67

Thread(F)

PG (DIN 40430)

Size(F)

PG48

Product code

P92148

Color

Black

NW(mm)

7

Thread(F)

Metrico (ISO 965)

Size(F)

M12x1,5

Product code

P93012

Color

Black

NW(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Product code

P93016

Color

Black

NW(mm)

17

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Product code

P93020

Color

Black

NW(mm)

23

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Product code

P93025

Color

Black

NW(mm)

29

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Product code

P93032

Color

Black

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Product code

P93040

Color

Black

NW(mm)

48

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Product code

P93050

Color

Black

NW(mm)

48

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Product code

P93063

Color

Black

NW(mm)

67

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Product code

P93163

Color

Black

NW(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Product code

P93216

Color

Black

NW(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Product code

P93220

Color

Black

NW(mm)

36

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Product code

P93250

Characteristics

Operating temperature: – 50 °C / + 135 °C
Degree of protection IP: IP66
Material: Polyamide 66 (PA66)
Color: Black
Reference standard: EN IEC 61386, UL1696
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing EN IEC 61386: Flame retardant
UV : Excellent

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Halogen free

International Railway Industry Standard (ISO TS 22163) - 238323138

Limiting Oxygen Index of greater than 32%, low smoke and low toxicity

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Transport for London – TFL
