Connector Fitting type PA Y

Fitting “Y” for corrugated flexible conduit IP66/IP67/IP68/IP69. Y dividers manufactured in Polyamide (PA6) in compliance with the norm EN IEC 61386 and self-extinguishing according to the standard UL 94. These dividers prevent vibration and ensure IP 69.

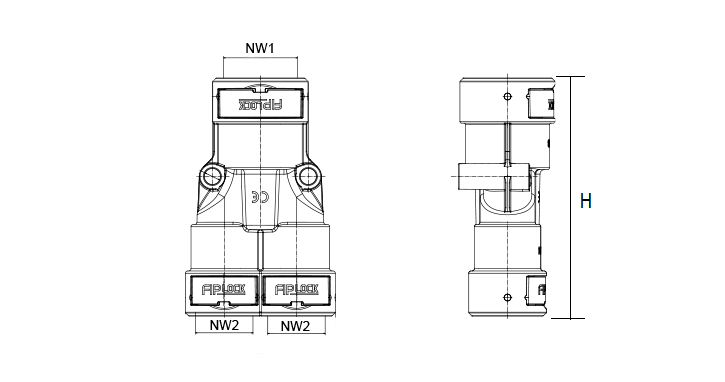

NW1 – Nominal diameter of the conduit
NW2 – Nominal diameter of the conduit
H – Height of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey

Color

Color

NW(mm)

NW(mm)

H(mm)

H(mm)

NW 2(mm)

NW 2(mm)

Product code

Color

Black

NW(mm)

10

H(mm)

67

NW 2(mm)

7

Product code

PY100707

Color

Black

NW(mm)

12

H(mm)

73

NW 2(mm)

10

Product code

PY121010

Color

Black

NW(mm)

17

H(mm)

85

NW 2(mm)

12

Product code

PY171212

Color

Black

NW(mm)

23

H(mm)

104.2

NW 2(mm)

17

Product code

PY231717

Color

Black

NW(mm)

29

H(mm)

109

NW 2(mm)

23

Product code

PY292323

Color

Black

NW(mm)

36

H(mm)

130

NW 2(mm)

29

Product code

PY362929

Color

Black

NW(mm)

48

H(mm)

144

NW 2(mm)

36

Product code

PY483636

Characteristics

Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386, UL1696
Tensile strength: 500 N
Notched bar impact test ISO 180: 7-25 KJ/m2
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Excellent (40 anni)
