Connector Fitting type 90° flange
90 ° Flange connector for corrugated flexible conduit IP66/IP67/IP68/IP69. The one-piece 90°-flange cable protection conduit fitting, made of specially modified, free-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UV resistance, it is also perfectly suited for outdoor installations. With the brand new 360° interlocking system and an inside conduit seal, it complies with the highest possible protection class IP69 in combination with our corrugated conduits. Being delivered pre-assembled and easy to re-open by using a commercially available slotted screwdriver, ensures significant time saving during installation and disassembly.

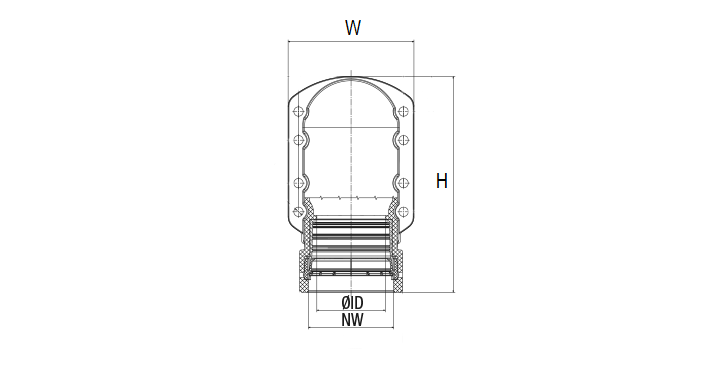

NW – Nominal diameter of the conduit
H – Height of the fitting
W – Width of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Application sectors
Characteristics
Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386, UL1696
Tensile strength: 500 N
Notched bar impact test ISO 180: 7-25 KJ/m2
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Excellent (40 anni)
