Flexible Metal Conduits

Conduit type DMTLNZ

Flexible hot deep galvanised steel conduit with reinforced clutch overbraided with hot deep galvanised steel wire. Suitable where twinklings or incandescemt slags are present (rolling mill, foundry, welders and moulds). High flexibility and mechanical resistance to traction, torsion, compression and corrosion are required. It’s usable where insulation is not mandatory.

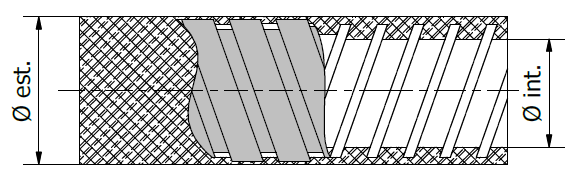

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
Material: Conduit in Galvanized steel overbraided first with glass fiber and second overbraided with Galvanized steel wire

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

Product code

CAD

θ int(mm)

10

θ est(mm)

15

Color

Steel

Product code

DMT-LNZ 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

17.5

Color

Steel

Product code

DMT-LNZ 212

CAD

CAD 3D

θ int(mm)

15.5

θ est(mm)

21

Color

Steel

Product code

DMT-LNZ 216

CAD

CAD 3D

θ int(mm)

20.5

θ est(mm)

26.5

Color

Steel

Product code

DMT-LNZ 221

CAD

CAD 3D

θ int(mm)

26.5

θ est(mm)

32.5

Color

Steel

Product code

DMT-LNZ 227

CAD

CAD 3D

θ int(mm)

34.5

θ est(mm)

42.5

Color

Steel

Product code

DMT-LNZ 235

CAD

CAD 3D

θ int(mm)

39.5

θ est(mm)

47.5

Color

Steel

Product code

DMT-LNZ 240

CAD

CAD 3D

θ int(mm)

50.5

θ est(mm)

59

Color

Steel

Product code

DMT-LNZ 250

CAD

CAD 3D

Characteristics

Operating temperature: – 45 °C / + 300 °C
Degree of protection IP: IP54
Material: Conduit in Galvanized steel overbraided first with glass fiber and second overbraided with Galvanized steel wire
Color: Steel
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 4 4 5 6
Tensile strength: 1000 N
Compressive strength: 1250 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Good

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
