Flexible Metal Conduits

Conduit type DMTLNX

Stainless steel AISI 304 flexible conduit with fiberglass and recovered stainless steel AISI 304 IP54. Flexible stainless steel conduit of AISI 304 with internal reinforced clutch before recovered of fiberglass and after overbraided with stainless steel wire AISI 304, very suited for installations with temperature higher than 300°C where is foreseen the presence of twinkling and incandescent slags (rolling mill,foundry, welders, printing works). It has a good mechanical resistance to traction, torsion and compression. Excellent resistance to aging, to a wide range of oils and to a lot of acids used in industries, self-extinguishing according to norms EN IEC 61386. EN IEC 61386 Certificate equivalent standard: Meets with the requirements of BS EN 61386 -2 -3 and BS 731 Part 1.

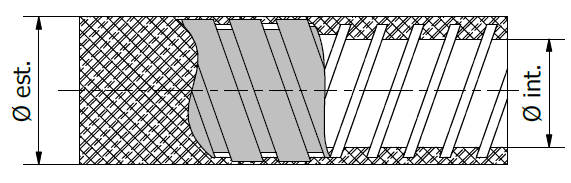

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
Material: Conduit in Stainless Steel AISI 304 first overbraided with glass fiber and second overbraided with Stainless Steel AISI 304 wire

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

Product code

CAD

θ int(mm)

10

θ est(mm)

15

Color

Steel

Product code

DMT-LNX 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

17.5

Color

Steel

Product code

DMT-LNX 212

CAD

CAD 3D

θ int(mm)

15.5

θ est(mm)

21

Color

Steel

Product code

DMT-LNX 216

CAD

CAD 3D

θ int(mm)

20.5

θ est(mm)

26.5

Color

Steel

Product code

DMT-LNX 221

CAD

CAD 3D

θ int(mm)

26.5

θ est(mm)

32.5

Color

Steel

Product code

DMT-LNX 227

CAD

CAD 3D

θ int(mm)

34.5

θ est(mm)

42.5

Color

Steel

Product code

DMT-LNX 235

CAD

CAD 3D

θ int(mm)

39.5

θ est(mm)

47.5

Color

Steel

Product code

DMT-LNX 240

CAD

CAD 3D

θ int(mm)

50.5

θ est(mm)

59

Color

Steel

Product code

DMT-LNX 250

CAD

CAD 3D

Characteristics

Operating temperature: – 45 °C / + 300 °C
Degree of protection IP: IP54
Material: Conduit in Stainless Steel AISI 304 first overbraided with glass fiber and second overbraided with Stainless Steel AISI 304 wire
Color: Steel
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 4 4 5 6
Tensile strength: 1000 N
Compressive strength: 1250 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent resistance

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.

Certifications

Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
