Flexible Metal Conduits

Conduit type DMC HJT L

Galvanized steel conduit with PVC (high low temp.) with over silicon elastomer with fiberglass IP67. Flexible hot deep galvanized steel conduit, reinforced clutch, before recovered of smooth ABT PVC -40°C +105°C heavy bore coating and well anchored to the metal conduit and after of silicon elastomer with fiberglass, developed to offer togheter with high mechanical protection to traction, compression and crash, also thermic protection in particular aggressive enviroment in presence of fl ames, splashes of metal or of melted glass, steam water. The external recovering is made up by a mineral fiberglass, with a silicon elastomer, that can resist to exercise temperatures range -60°C + 260°C. Excellent flexibility to low temperatures, good resistance to atmospheric agents: (UV rays, ozone) good compatibility with most of insulating paints of “H” class. Self-extinguishing according to norms EN IEC 61386, US aeronautic standars SAE AS 1055 – AS 1072 – NF F 16-101 – P 92-507- Classification F0 e M2 per NF F 16-101 e P 92-507 NF EN 60695-2-1/0 e 1.

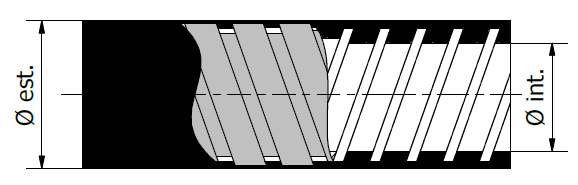

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
Material: Conduit in Galvanized steel and recovered in PVC with over secondary recovery in fiberglass Silicone Elastomer

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

Product code

CAD

θ int(mm)

10

θ est(mm)

19.5

Color

Orange

Product code

DMC-HJT L 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

22

Color

Orange

Product code

DMC-HJT L 212

CAD

CAD 3D

θ int(mm)

15.5

θ est(mm)

25.5

Color

Orange

Product code

DMC-HJT L 216

CAD

CAD 3D

θ int(mm)

20.5

θ est(mm)

31

Color

Orange

Product code

DMC-HJT L 221

CAD

CAD 3D

θ int(mm)

26.5

θ est(mm)

37

Color

Orange

Product code

DMC-HJT L 227

CAD

CAD 3D

θ int(mm)

34.5

θ est(mm)

47

Color

Orange

Product code

DMC-HJT L 235

CAD

CAD 3D

θ int(mm)

39.5

θ est(mm)

52

Color

Orange

Product code

DMC-HJT L 240

CAD

CAD 3D

θ int(mm)

50.5

θ est(mm)

64

Color

Orange

Product code

DMC-HJT L 250

CAD

CAD 3D

Application sectors

Characteristics

Operating temperature: – 60 °C / + 260 °C
Degree of protection IP: IP67
Material: CConduit in Galvanized steel and recovered in PVC with over secondary recovery in fiberglass Silicone Elastomer
Color: Blue
Reference standard: EN IEC 61386, EN45545-2 (Fiberglass silicone elastomer: Halgon free – the requirements required for risk levels HL1-HL2 requirement set R22, HL1-HL3 requirement set R23)
Classification codes EN IEC 61386: 4 4 5 6
Tensile strength: 1000 N
Compressive strength: 1250 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Good

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.

Certifications

Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
