Flexible Metal Conduits

Conduit type DMC DMCN

Galvanized steel conduit recovered with smooth grey PVC heavy bore coating IP67. Pliable hot deep galvanized steel conduit, reinforced clutch, recovered of smooth grey PVC heavy bore coating and well anchored to the metal conduit certified and periodically inspected by the IMQ ( Italian Mark of Quality ), very suited where is necessary a strong mechanical resistance to traction, torsion and compression, good resistance to aging, to a wide range of oils and to a lot of acids used in industries, self-extinguishing according to norms EN IEC 61386. EN IEC 61386 Certificate equivalent standard: Meets with the requirements of BS EN 61386 -2 -3 and BS 731 Part 1.

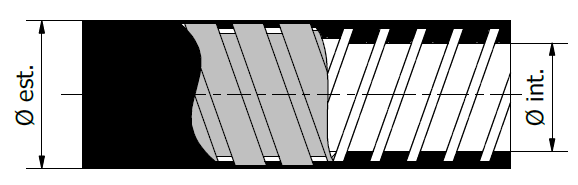

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
Material: Conduit in Galvanized steel and recovered in PVC
Color: Grey / Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

Product code

CAD

θ int(mm)

102

θ est(mm)

112

Color

Grey

Product code

DMC 102

CAD

-

θ int(mm)

10

θ est(mm)

15.5

Color

Grey

Product code

DMC 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

18

Color

Grey

Product code

DMC 212

CAD

CAD 3D

θ int(mm)

15.5

θ est(mm)

21.5

Color

Grey

Product code

DMC 216

CAD

CAD 3D

θ int(mm)

20.5

θ est(mm)

27

Color

Grey

Product code

DMC 221

CAD

CAD 3D

θ int(mm)

26.5

θ est(mm)

33

Color

Grey

Product code

DMC 227

CAD

CAD 3D

θ int(mm)

34.5

θ est(mm)

43

Color

Grey

Product code

DMC 235

CAD

CAD 3D

θ int(mm)

39.5

θ est(mm)

48

Color

Grey

Product code

DMC 240

CAD

CAD 3D

θ int(mm)

50.5

θ est(mm)

60

Color

Grey

Product code

DMC 250

CAD

CAD 3D

θ int(mm)

63

θ est(mm)

73

Color

Grey

Product code

DMC 263

CAD

-

θ int(mm)

77

θ est(mm)

88

Color

Grey

Product code

DMC 277

CAD

-

θ int(mm)

10

θ est(mm)

15.5

Color

Black

Product code

DMCN 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

18

Color

Black

Product code

DMCN 212

CAD

CAD 3D

θ int(mm)

15.5

θ est(mm)

21.5

Color

Black

Product code

DMCN 216

CAD

CAD 3D

θ int(mm)

20.5

θ est(mm)

27

Color

Black

Product code

DMCN 221

CAD

CAD 3D

θ int(mm)

26.5

θ est(mm)

33

Color

Black

Product code

DMCN 227

CAD

CAD 3D

θ int(mm)

34.5

θ est(mm)

43

Color

Black

Product code

DMCN 235

CAD

CAD 3D

θ int(mm)

39.5

θ est(mm)

48

Color

Black

Product code

DMCN 240

CAD

CAD 3D

θ int(mm)

50.5

θ est(mm)

60

Color

Black

Product code

DMCN 250

CAD

CAD 3D

Characteristics

Operating temperature: – 15 °C / + 80 °C
Degree of protection IP: IP67
Material: Conduit in Galvanized steel and recovered in PVC
Color: Grey / Black
Reference standard: EN IEC 61386, UL 1696 (only for color in Gray up to int. diameter at 50.5 mm)
Classification codes EN IEC 61386: 4 4 3 1
Tensile strength: 1000 N
Compressive strength: 1250 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Good

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.

Certifications

Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive

Standard for safety of flammability of plastic materials
