Flexible Metal Conduits

Conduit type DMC ABT

Galvanized steel conduit recovered with smooth grey PVC (high-low tem.) heavy bore coating IP67. Pliable hot deep galvanized steel conduit, reinforced clutch, recovered of smooth PVC heavy bore coating well anchored to metal conduit. It is resistant to high and low temperatures, with an exercise range -40°C to +105°C, and 120°C for short periods, very suited where is necessary a strong mechanical resistance and an excellent resistance to traction, torsion, compression and particularly advised for high and low temperatures and in presence of high temperature’s change, high resistance to aging, to a wide range of oils and to a lot of acids used in industries, self-extinguishing according to norms EN IEC 61386. EN IEC 61386 Certificate equivalent standard: Meets with the requirements of BS EN 61386 -2 -3 and BS 731 Part 1.

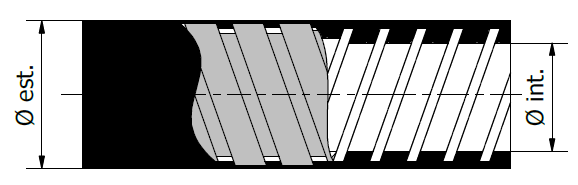

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
Material: Conduit in Galvanized steel and recovered in PVC

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

Product code

CAD

θ int(mm)

10

θ est(mm)

15.5

Color

Grey

Product code

DMC 210 ABT

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

18

Color

Grey

Product code

DMC 212 ABT

CAD

CAD 3D

θ int(mm)

15.5

θ est(mm)

21.5

Color

Grey

Product code

DMC 216 ABT

CAD

CAD 3D

θ int(mm)

20.5

θ est(mm)

27

Color

Grey

Product code

DMC 221 ABT

CAD

CAD 3D

θ int(mm)

26.5

θ est(mm)

33

Color

Grey

Product code

DMC 227 ABT

CAD

CAD 3D

θ int(mm)

34.5

θ est(mm)

43

Color

Grey

Product code

DMC 235 ABT

CAD

CAD 3D

θ int(mm)

39.5

θ est(mm)

48

Color

Grey

Product code

DMC 240 ABT

CAD

CAD 3D

θ int(mm)

50.5

θ est(mm)

60

Color

Grey

Product code

DMC 250 ABT

CAD

CAD 3D

Characteristics

Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP67
Material: Conduit in Galvanized steel and recovered in PVC
Color: Grey
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 4 4 4 3
Tensile strength: 1000 N
Compressive strength: 1250 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Good

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.

Certifications

Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive

Standard for safety of flammability of plastic materials
