Nylon and pvc conduits

Conduit in PVC type GFPT

Flexible conduit of light monoextruded PVC overbraided with galvanised steel wire IP67. Flexible conduit of light monoextruded PVC overbraided with galvanised steel wire, certified and periodically inspected by IMQ (Italian Mark of Quality), very suited in installations where is not necessary a certain mechanical resistance but in presence of twinkling and incandescent slags. Good resistance to aging , to a wide range of oils and to a lot of acids used in industries, self-extinguishing according to norms EN IEC 61386. EN IEC 61386 Certificate equivalent standard: Meets with the requirements of BS EN 61386 -2 -3 and BS 731 Part 1.

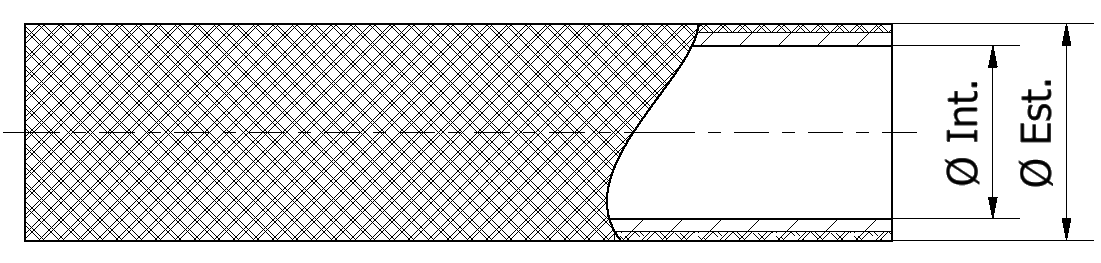

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
Material: Lightweight mono-extruded PVC recovered with overbraided galvanized steel
Color: Steel

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

Product code

CAD

θ int(mm)

10

θ est(mm)

15.5

Color

Steel

Product code

GFPT 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

17.5

Color

Steel

Product code

GFPT 212

CAD

CAD 3D

θ int(mm)

15

θ est(mm)

21

Color

Steel

Product code

GFPT 216

CAD

CAD 3D

θ int(mm)

20

θ est(mm)

26.5

Color

Steel

Product code

GFPT 221

CAD

CAD 3D

θ int(mm)

27

θ est(mm)

33

Color

Steel

Product code

GFPT 227

CAD

CAD 3D

θ int(mm)

36

θ est(mm)

42.5

Color

Steel

Product code

GFPT 235

CAD

CAD 3D

θ int(mm)

40

θ est(mm)

47.5

Color

Steel

Product code

GFPT 240

CAD

CAD 3D

θ int(mm)

51

θ est(mm)

59.5

Color

Steel

Product code

GFPT 250

CAD

CAD 3D

Characteristics

Operating temperature: – 15 °C / + 70 °C
Degree of protection IP: IP67
Material: Lightweight mono-extruded PVC recovered with overbraided galvanized steel
Color: Steel
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 1 2 3 1
Compressive strength: 125 N
Impact resistance: 1 J
Self-extinguishing EN IEC 61386: Flame retardant

Certifications

Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive

Standard for safety of flammability of plastic materials
