Nylon and pvc conduits

Conduit in PVC type GFP

Flexible conduit of light monoextruded PVC IP67. Flexible conduit of light mono extruded PVC (grey, blue and black), suited for food industries infact, as it is externally made of smooth PVC, it prevents the formation of deposits and incrustations, and internally permits sliding of cables. Suitable for installation where isn’t required a particular mechanical resistance. Good resistance to any kind of oil, aging phenomenon and chemicals used in factories, self-extinguishing according to norms EN IEC 61386. EN IEC 61386 Certificate equivalent standard: Meets with the requirements of BS EN 61386 -2 -3 and BS 731 Part 1.

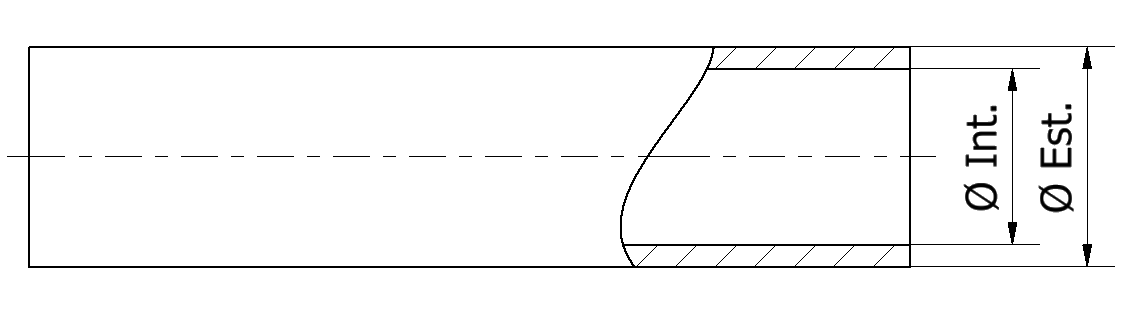

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
Material: PVC
Color: Grey / Sky Blue / Black

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

Product code

CAD

θ int(mm)

10

θ est(mm)

14

Color

Sky blue

Product code

GFPA 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

16

Color

Sky blue

Product code

GFPA 212

CAD

CAD 3D

θ int(mm)

15

θ est(mm)

20

Color

Sky blue

Product code

GFPA 216

CAD

CAD 3D

θ int(mm)

20

θ est(mm)

26

Color

Sky blue

Product code

GFPA 221

CAD

CAD 3D

θ int(mm)

27

θ est(mm)

34

Color

Sky blue

Product code

GFPA 227

CAD

CAD 3D

θ int(mm)

36

θ est(mm)

43

Color

Sky blue

Product code

GFPA 235

CAD

CAD 3D

θ int(mm)

40

θ est(mm)

48

Color

Sky blue

Product code

GFPA 240

CAD

CAD 3D

θ int(mm)

51

θ est(mm)

62

Color

Sky blue

Product code

GFPA 250

CAD

CAD 3D

θ int(mm)

10

θ est(mm)

14

Color

Grey

Product code

GFPG 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

16

Color

Grey

Product code

GFPG 212

CAD

CAD 3D

θ int(mm)

15

θ est(mm)

20

Color

Grey

Product code

GFPG 216

CAD

CAD 3D

θ int(mm)

20

θ est(mm)

26

Color

Grey

Product code

GFPG 221

CAD

CAD 3D

θ int(mm)

27

θ est(mm)

34

Color

Grey

Product code

GFPG 227

CAD

CAD 3D

θ int(mm)

36

θ est(mm)

43

Color

Grey

Product code

GFPG 235

CAD

CAD 3D

θ int(mm)

40

θ est(mm)

48

Color

Grey

Product code

GFPG 240

CAD

CAD 3D

θ int(mm)

51

θ est(mm)

62

Color

Grey

Product code

GFPG 250

CAD

CAD 3D

θ int(mm)

10

θ est(mm)

14

Color

Black

Product code

GFPN 210

CAD

CAD 3D

θ int(mm)

12

θ est(mm)

16

Color

Black

Product code

GFPN 212

CAD

CAD 3D

θ int(mm)

15

θ est(mm)

20

Color

Black

Product code

GFPN 216

CAD

CAD 3D

θ int(mm)

20

θ est(mm)

26

Color

Black

Product code

GFPN 221

CAD

CAD 3D

θ int(mm)

27

θ est(mm)

34

Color

Black

Product code

GFPN 227

CAD

CAD 3D

θ int(mm)

36

θ est(mm)

43

Color

Black

Product code

GFPN 235

CAD

CAD 3D

θ int(mm)

40

θ est(mm)

48

Color

Black

Product code

GFPN 240

CAD

CAD 3D

θ int(mm)

51

θ est(mm)

62

Color

Black

Product code

GFPN 250

CAD

CAD 3D

Characteristics

Operating temperature: – 15 °C / + 70 °C
Degree of protection IP: IP67
Material: PVC
Color: Grey / Sky blue / Black
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 1 1 3 1
Compressive strength: 125 N
Impact resistance: 0,5 J
Self-extinguishing EN IEC 61386: Flame retardant

Certifications

Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive

Standard for safety of flammability of plastic materials
