Cable gland type AM PR CURVO

Variable angle cable gland with male thread IP66/IP67/IP68. Male fixed thread cable gland with variable degree and mechanical tightening that assures an high resistance to traction and to every type of vibrations in every type of uses. Fitting prodived with variable degree is an EURO 2000’s INVENTION PATENT N. MI2004A000698, that can be used everywhere there is an obliged cables passing. The advantage of using the variable degree is the fact that you are not obliged to use standard 45° and 90° degree fittings that normally can’t do the ideal curving. Made of nickel plated brass and inox AISI 304, variable degree is made of stainless steel AISI 304, galvanized steel washer with minimum thickness 2nm and rubber in elastomer thermosetting that assures an IP68 rating.

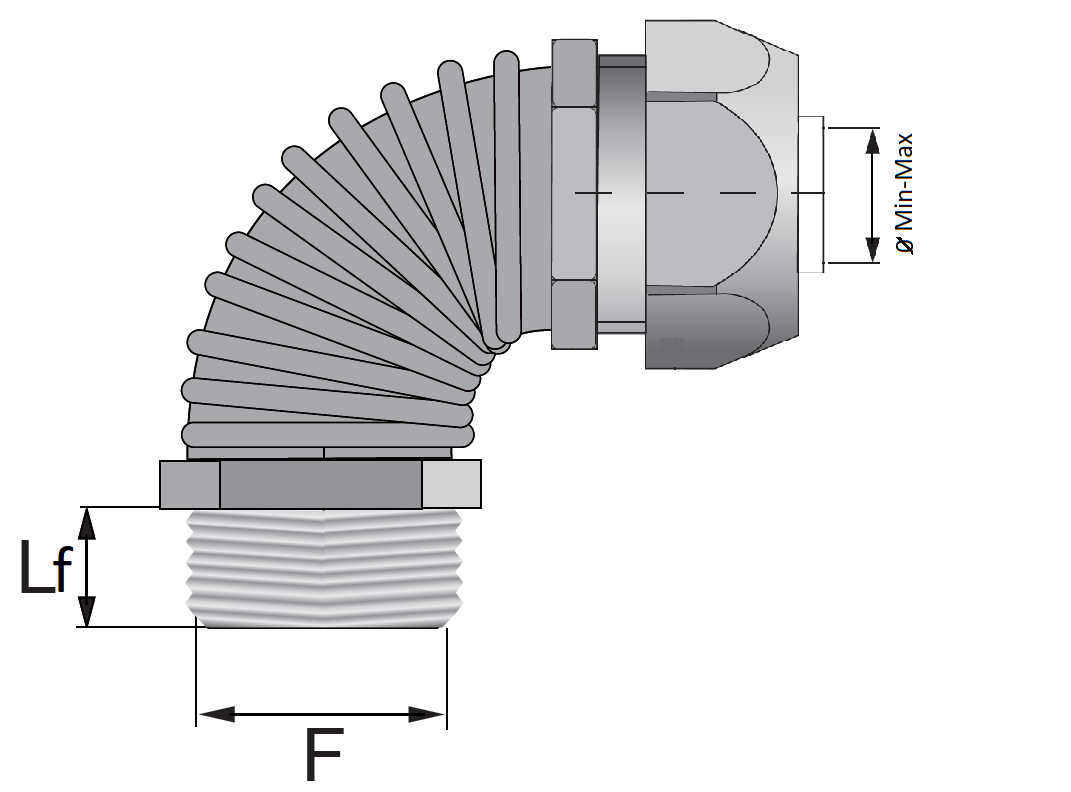

θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Lf – Thread length
Material: Nickel plated brass
Color: Nickel

Select Thread(F)

Lf(mm)

Lf(mm)

θ min(mm)

θ min(mm)

θ max(mm)

θ max(mm)

Product code

CAD

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/4”

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

51210

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

51211

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

Lf(mm)

9

θ min(mm)

8

θ max(mm)

11.5

Product code

51212

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Lf(mm)

9

θ min(mm)

8

θ max(mm)

11.5

Product code

51213

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

51214

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Product code

51215

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Product code

51216

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”1/4

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

23

Product code

51217

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”1/2

Lf(mm)

14

θ min(mm)

30.5

θ max(mm)

36

Product code

51218

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

Lf(mm)

14

θ min(mm)

43

θ max(mm)

49.5

Product code

51219

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG7

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

51220

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

51221

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

51222

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

9

θ min(mm)

8

θ max(mm)

11.5

Product code

51223

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

11.5

Product code

51224

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

51225

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

51226

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Product code

51227

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Product code

51228

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

23

Product code

51229

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG42

Lf(mm)

14

θ min(mm)

30.5

θ max(mm)

36

Product code

51230

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG48

Lf(mm)

14

θ min(mm)

43

θ max(mm)

49.5

Product code

51231

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Product code

51240

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

11.5

Product code

51241

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

11.5

Product code

51242

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Product code

51243

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Product code

51244

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Product code

51245

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

23

Product code

51246

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

14

θ min(mm)

30.5

θ max(mm)

36

Product code

51247

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Lf(mm)

14

θ min(mm)

43

θ max(mm)

49.5

Product code

51248

CAD

CAD 3D

Characteristics

Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67/IP68
Material: Nickel plated brass
Color: Nickel
Reference standard: IEC / EN 62444
Tensile strength IEC / EN 62444: Cable anchor for unarmoured cable – Cable retention class B
Impact resistance IEC / EN 62444: 6 J
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Traction test (cable anchoring for unarmoured cable - cable retention class B) and shore tests for the sealing rubber in accordance with EN / IEC 62444 on all closed systems consisting of cable glands.
