Abrasion protection/connecting sleeve PA HA

Abrasion protection/connecting sleeve for flexible corrugated conduit. The abrasion protection and connecting sleeve PAHA can be easily retrofitted to dynamically moving corrugated conduits. This is particularly recommended for highly loaded positions which can cause increased wear of the corrugated pipes due to strong friction effects. The sleeves are also suitable for corrugated conduit connections which additionally reduce torsion forces to the conduits in dynamic applications and can further improve the service life of the system. The sleeves are ideally suited for corrugated conduits with fine or coarse profiles.

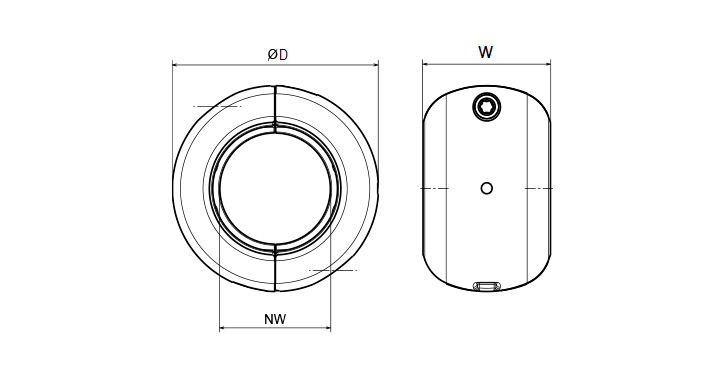

NW – Nominal diameter of the conduit
H – Height of the fitting
θ D – External diameter of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black

NW(mm)

NW(mm)

Typology

Typology

W(mm)

W(mm)

D(mm)

D(mm)

Product code

NW(mm)

10

Typology

F

W(mm)

22.8

D(mm)

30

Product code

P20510FB

NW(mm)

12

Typology

F

W(mm)

21.7

D(mm)

33

Product code

P20512FB

NW(mm)

17

Typology

C

W(mm)

29.4

D(mm)

40

Product code

P20517CB

NW(mm)

17

Typology

F

W(mm)

29.4

D(mm)

40

Product code

P20517FB

NW(mm)

23

Typology

C

W(mm)

34.2

D(mm)

52

Product code

P20523CB

NW(mm)

23

Typology

F

W(mm)

34.2

D(mm)

52

Product code

P20523FB

NW(mm)

29

Typology

C

W(mm)

36.1

D(mm)

58

Product code

P20529CB

NW(mm)

29

Typology

F

W(mm)

36.1

D(mm)

58

Product code

P20529FB

NW(mm)

36

Typology

C

W(mm)

41.1

D(mm)

69

Product code

P20536CB

NW(mm)

36

Typology

F

W(mm)

41.1

D(mm)

69

Product code

P20536FB

NW(mm)

48

Typology

C

W(mm)

43.3

D(mm)

81

Product code

P20548CB

NW(mm)

48

Typology

F

W(mm)

43.3

D(mm)

81

Product code

P20548FB

NW(mm)

56

Typology

C

W(mm)

47.2

D(mm)

94

Product code

P20556CB

NW(mm)

70

Typology

C

W(mm)

50.8

D(mm)

108

Product code

P20570CB

Characteristics

Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 165°C (100h)
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black
Reference standard: EN IEC 61386
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22
Self-extinguishing EN IEC 61386: Flame retardant
UV and weathering performance IS FIP: Very Good (15 to 20 anni)
